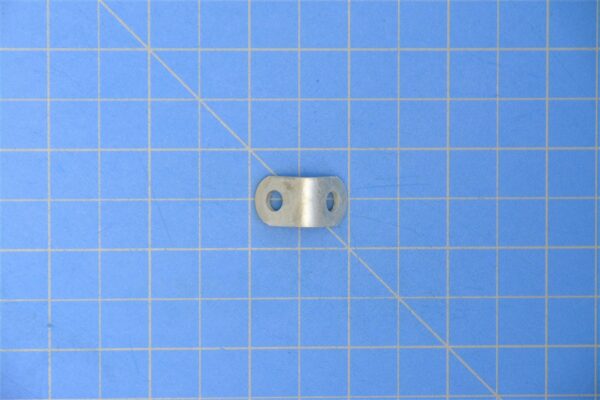

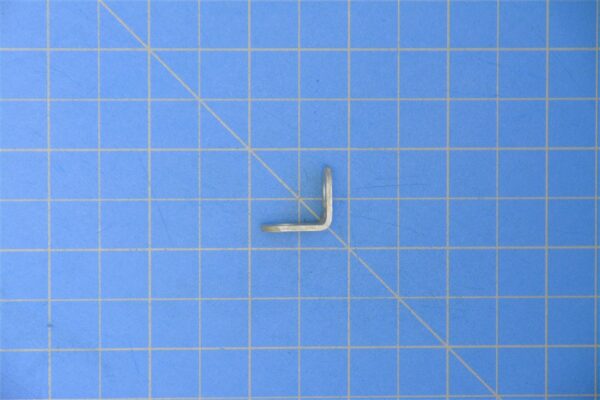

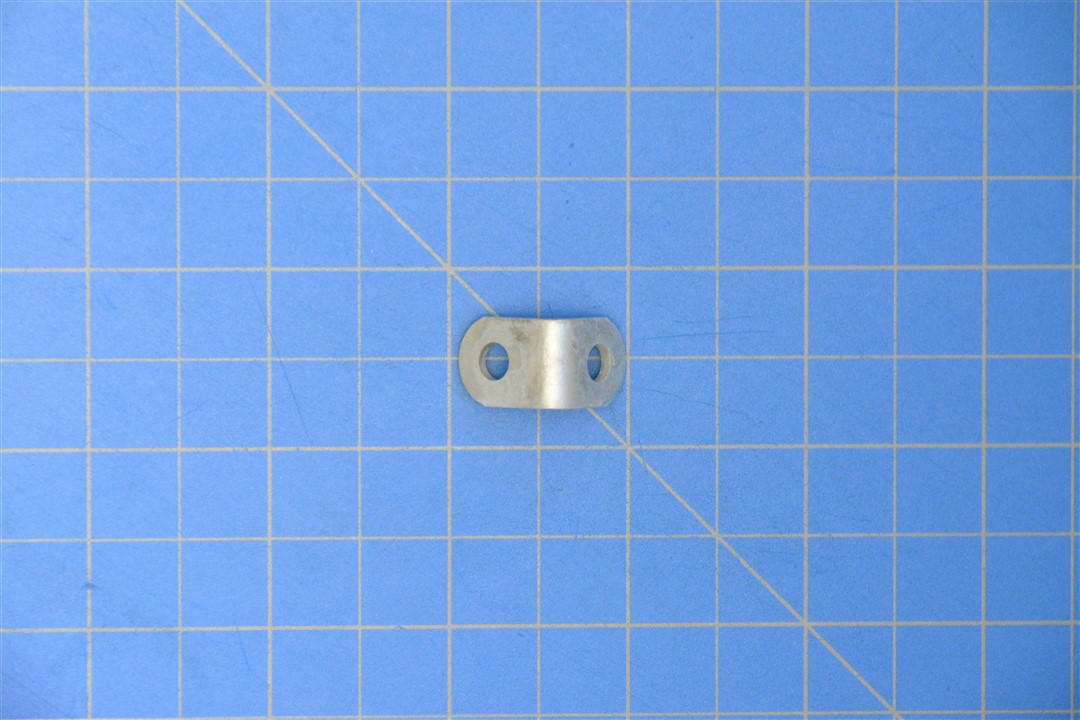

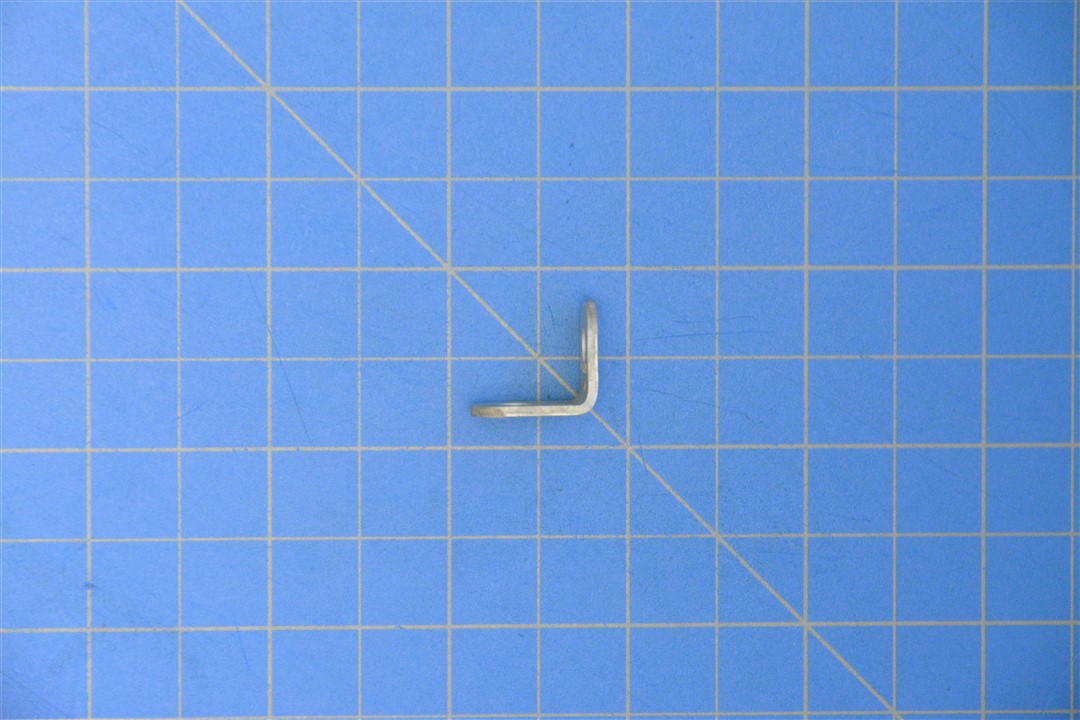

AN743-12 - BRACKET, ANGLE
NSN: 5340-00-598-8251, NIIN: 5988251
New Surplus, Sold Per Each
Angle brackets are L-shaped metal or plastic supports used to reinforce joints, mount objects, or provide structural stability at a 90-degree angle. Commonly used in construction, furniture assembly, and industrial applications, they ensure secure connections between surfaces.
Specifications
Style/Shape: Angle
Material: Aluminum Alloy
Angle Of First Leg: 90.0° Nom
Edge To Hole Center Length - First Leg: 0.250" Nom
Edge To Hole Center Length Second Leg: 0.250" Nom
Edge To Hole Center Width - First Leg: 0.250" Nom
Edge To Hole Center Width Second Leg: 0.250" Nom
End Radius Of First Leg: 0.250" Nom
End Radius Of Second Leg: 0.250" Nom
Hole Arrangement Style - First Leg: One Hole
Hole Arrangement Style Second Leg: One Hole
Hole Diameter On First Leg: 0.204" Nom
Hole Diameter On Second Leg: 0.204" Nom
Length Of First Leg: 0.625" Nom
Length Of Second Leg: 0.690" Nom
Relationship Of Second Leg To First: Identical
Style Of First Leg: End Radius
Style Of Second Leg: End Radius
Thickness Of First Leg: 0.063" Nom
Thickness Of Second Leg: 0.063" Nom
Width Of First Leg: 0.500" Nom
Width Of Second Leg: 0.500" Nom
Part Number Info
Part Number: AN743-12
Unpunctuated: AN74312
NSN: 5340-00-598-8251
NIIN: 5988251
Potential Alternates: 5340PL0845471, 015-2930-010, AS7431
Replaces Cancelled NSN: 5340-00-664-7993, 5340-00-597-9380, 5340-00-574-3923
New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.
Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.
Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.
