S6110-24003-001 - LINER, SWASHPLATE, MAIN ROTOR, NEW, SOLD PER EACH, NSN: 560-00-830-2858, NIIN: 8302858

S6110-24003-001 - LINER, SWASHPLATE, MAIN ROTOR

NSN: 560-00-830-2858, NIIN: 8302858
New, Sold Per Each

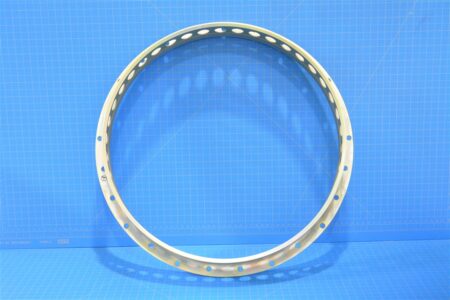

This steel liner is a precision-engineered component designed for use within the main rotor swashplate assembly of a helicopter. Its primary function is to provide a durable and low-friction interface between moving parts within the swashplate mechanism. By acting as a replaceable wear surface, the liner helps to ensure smooth and accurate transmission of flight control inputs from the stationary swashplate to the rotating swashplate, ultimately contributing to the precise control of the main rotor blades' pitch. The specific dimensions, including the inner and outer diameters and the pattern of holes, are critical for its proper fit and function within the larger swashplate assembly of a particular helicopter model.

Specifications

Material: Steel
Hole Diameter: 0.812"
Inner Diameter: 15.468"
Outer Diameter: 15.694" (Minimum) To 15.695" (Maximum)

Part Number Info

Part Number: S6110-24003-001
Unpunctuated: S611024003001
NSN: 560-00-830-2858
NIIN: 8302858

Accompaning Documents and Conditions

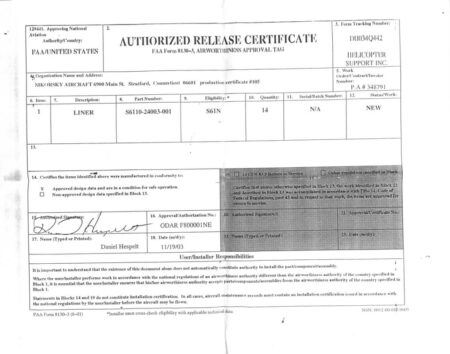

FAA Form 8130-3: An FAA certification present with the part, indicating its airworthiness status at the time of its prior handling.

AVBOX US Certificate of Conformance: This product comes with an AVBOX US Certificate of Conformance (CoC), assuring that the part(s) meet specified design, quality, and regulatory standards at the time of manufacture, providing confirmation of compliance and adherence to applicable aviation requirements.

New: These parts are classified as new and come with one or more of the following supporting documents: pick tickets, packing slips, or original labels from the manufacturer. They may also include certifications such as FAA 8130, ATA 106 forms, a Certificate of Conformance (CoC) from the manufacturer, ISC Certification, FAA 121 authorization, or JAA Form 1. These documents verify the authenticity and traceability of the parts, making them suitable for regulated industries where stringent documentation is required.

Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.

Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.
