MS27039DD1-08 - SCREW, MACHINE

NSN: 5305-00-947-4278, NIIN: 9474278
New Surplus, Sold Per Each

A machine screw is a threaded fastener designed for precise assembly, typically used with pre-tapped holes or nuts. It withstands shear force, which is the force that causes two connected surfaces to slide past each other in opposite directions.

Specifications

Head Style: Pan
Internal Drive Style: Cross Recess Type 1
Screw Surface Treatment: Anodize
Screw Material: Aluminum Alloy
Fastener Length: 0.516" Min - 0.563" Max
Head Diameter: 0.357" Min - 0.373" Max
Head Height: 0.122" Min - 0.133" Max
Tensile Strength Min: 62000 Pounds Per Square Inch
Thread Class: 3A
Thread Diameter: 0.190"
Thread Direction: Right-Hand
Thread Length: 0.377" Min - 0.516" Max
Thread Quantity Per Inch: 32
Thread Series Designator: Unf

Part Number Info

Part Number: MS27039DD1-08
Unpunctuated: MS27039DD108
NSN: 5305-00-947-4278
NIIN: 9474278

Potential Alternates: 5305PL0759437, NAS221DD8

Replaces Cancelled NSN: 5305-00-961-4557

New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.

Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.

Product Testing: Every product is inspected for accuracy, quality, and functionality before shipping to meet our high standards.

Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.

Pedal

65-24573-1 - Pedal, AR, Sold Per Each

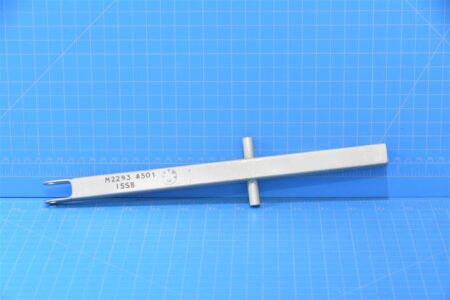

M2293A501 - Pedal, NS, Sold Per Each
