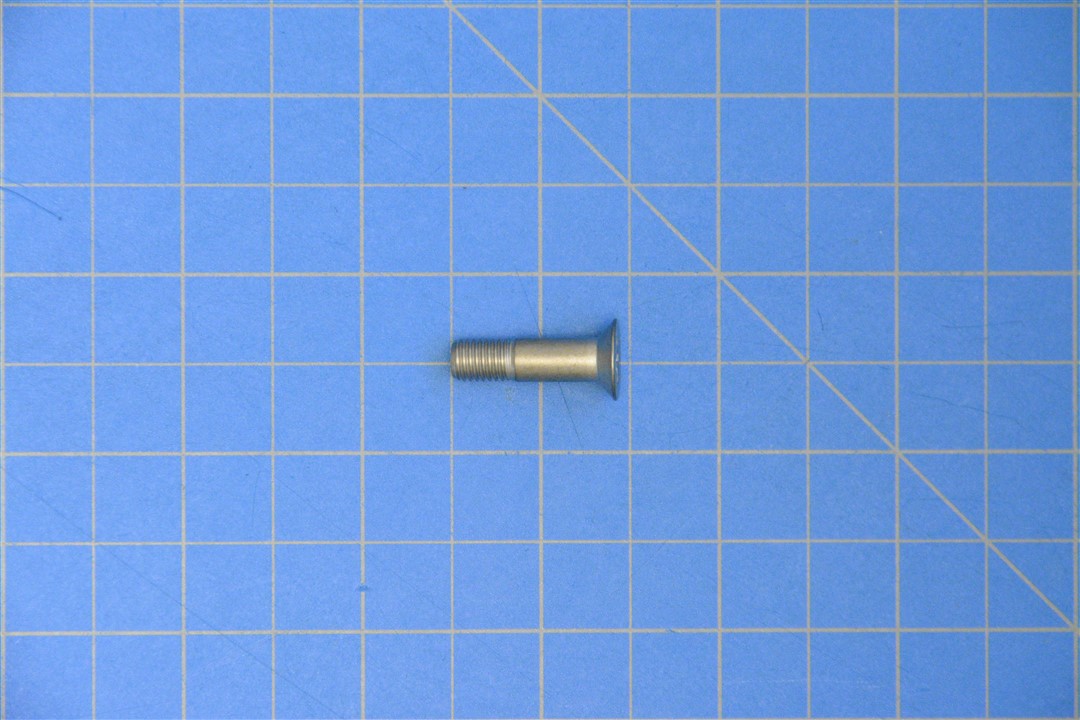

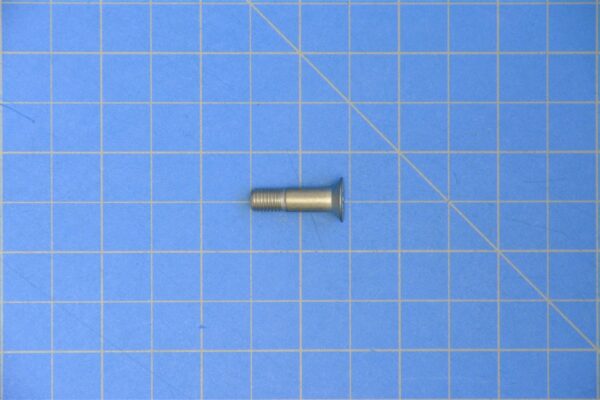

NAS7604-9 - BOLT, SHEAR, NSN: 5306-00-164-0454

NAS7604-9 - BOLT, SHEAR

NSN: 5306-00-164-0454
New Surplus, Sold Per Each

---

A shear bolt is a fastener designed to fail at a specific shear force, which is a force that causes two parts of a material to slide past each other in opposite directions. This protects machinery or structures by acting as a mechanical fuse during overload conditions.

Specifications

Head Style: Dished Hexagon
Surface Treatment: Passivate
Material: Iron Alloy
Fastener Length: 0.972" min - 1.002" max
Grip Diameter: 0.2490" min - 0.2495" max
Grip Length: 0.552" min - 0.572" max
Head Height: 0.125" min - 0.140" max
Tensile Strength min: 160000 Pounds Per Square Inch
Width Between Flats: 0.430" min - 0.439" max
Thread Class: 3A
Thread Diameter: 0.250"
Thread Direction: Right-Hand
Thread Length: 0.400" min - 0.450" max
Thread Quantity Per Inch: 28
Thread Series Designator: Unjf

Part Number: NAS7604-9
Unpunctuated: NAS76049
NSN: 5306-00-164-0454

Potential Alternates: NAS7604-09

NAS standards are maintained by the Aerospace Industries Association (AIA) and specify high-performance parts, such as fasteners and fittings, used in both military and commercial aerospace applications.

New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.

Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.

Product Testing: Every product is inspected for accuracy, quality, and functionality before shipping to meet our high standards.

Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.
