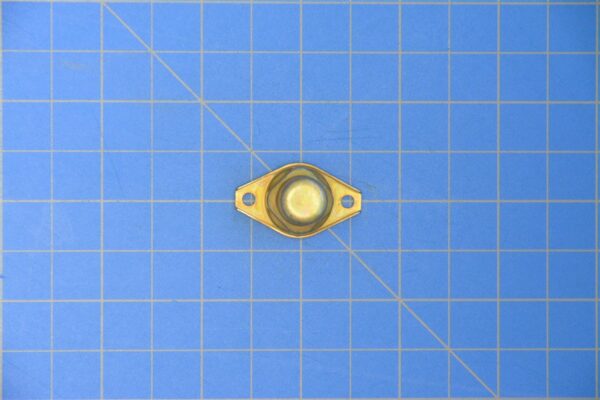

NAS1473A5 - NUT, SELF-LOCKING, PLATE
NSN: 5310-00-974-6614, NIIN: 9746614
New Surplus, Sold Per Each
A self-locking nut plate is a fastener assembly with a built-in locking mechanism to prevent loosening due to vibration.
Specifications
Mount Arrangement: 2 Holes
Nut Mounting: Straight Holes
Nut Style: Plate
Lubrication: Dry Film Lubricant
Surface Treatment: Anodize Base
Surface Treatment: Cadmium And Chromate - Nut
Surface Treatment: Cadmium Shell And Chromate Shell
Material: Aluminum Alloy
Material: Rubber Synthetic Seal
Material: Steel
Material: Steel
Center To Center Distance Between Mounting Holes Along Length: 0.998" Min - 1.002" Max
Center To Mounting Distance: 0.495" Min - 0.505" Max
Counterbore Diameter: 0.352" Min Base
Mounting Hole Diameter: 0.130" Min - 0.135" Max
Nut Counterbore Depth: 0.135" Min Base
Nut Height: 0.410" Max
Nut Length: 1.280" Nom
Overall Height: 0.798" Max
Thickness: 0.018" Nom
Width: 0.762" Max
Features Provided: Floating - Nut
Locking Feature: Prevailing Torque All Metal Design
Temperature Rating: -80.0° F Min - 250.0° F Max
Part Number Info
Part Number: NAS1473A5
Unpunctuated: NAS1473A5
NSN: 5310-00-974-6614
NIIN: 9746614
Potential Alternates: F1968-5, A2500-054, A2502-054, FMA2502-054, BACN10EN5E
Replaces Cancelled NSN: 5310-00-964-9511, 5310-00-836-3880, 5310-00-576-8035, 5310-00-123-8925, 5310-00-008-8479
New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.
Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.
Product Testing: Every product is inspected for accuracy, quality, and functionality before shipping to meet our high standards.
Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.
