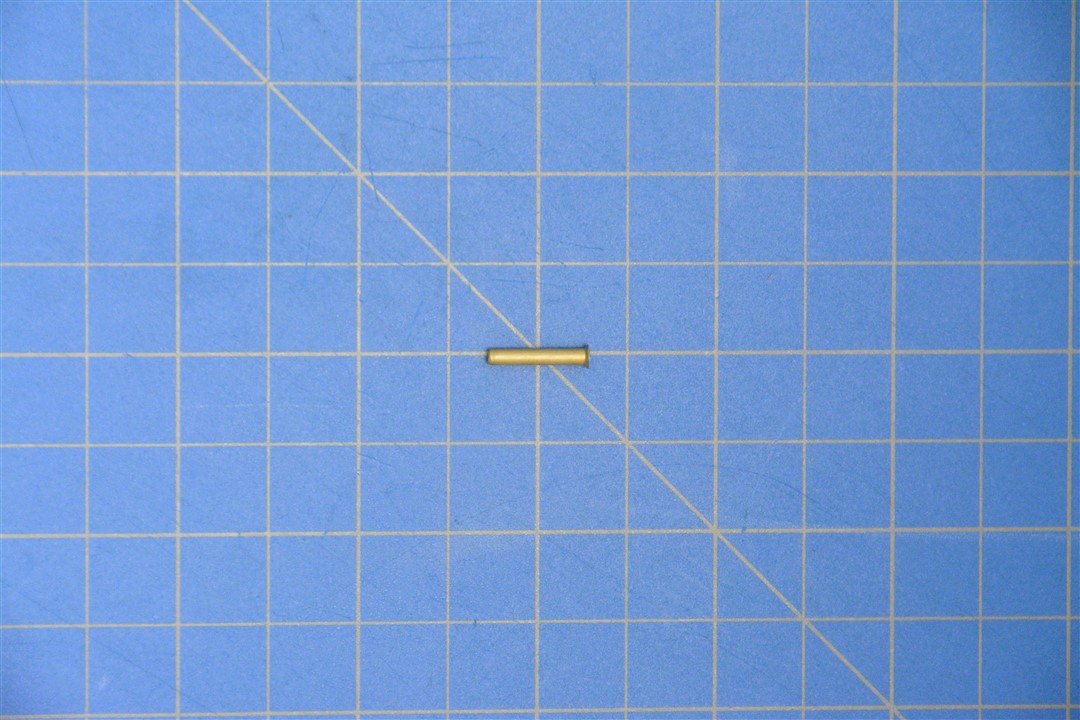

NAS1097AD3-9 - SOLID RIVET, ANODIZE OR CHROMATE ALUMINUM ALLOY 2117

New Surplus, Sold Per Each

---

Type: Solid Rivet
A solid rivet is a one-piece fastener with a head on one end, deformed on the other end to join materials together, commonly used in structural applications.
Standard: National Aerospace Standard / NAS Standard
NAS standards are maintained by the Aerospace Industries Association (AIA) and specify high-performance parts, such as fasteners and fittings, used in both military and commercial aerospace applications.

Series: NAS1097
Material: Aluminum Alloy 2117
Surface: Anodize Or Chromate
Details/Features: Straight, Undersized Oval Countersunk Head
Countersink Angle: 100.0° (Nominal)
Countersink Height: 0.021" (Nominal)
Fastener Length: 0.562" (Nominal)
Head Height: 0.003" -0.005"
Head Major Diameter: 0.126" -0.148"
Head Minor Diameter: 0.086" -0.096"
Heat Treatment: T-4 Solution Heat Treated Overall
Shank Diameter: 0.156" (Nominal)
Specification/Standard Data: 80205-Nas1097 Professional/Industrial Association Standard

NSN: 5320-00-013-8664
Minimized: NAS1097AD39
Possible Alternatives: National Aerospace Standards: NAS1097AD3-9, Paeaeesikunta: 10123401
