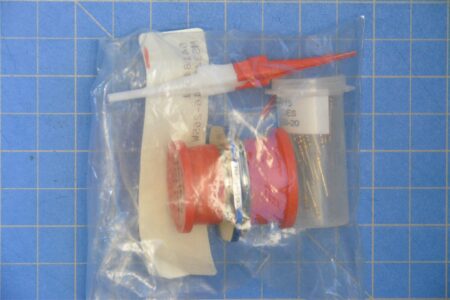

MS3474L16-26SW – CONNECTOR, RECEPTACLE, ELECTRICAL
New Surplus, Sold Per Each
Specifications
Thread Class: 2A
Thread Direction: Right-hand
Body Style: Straight shape, external coupling
Overall Length: 1.405 in. max
Overall Diameter: 1.610 in. min – 1.641 in. max
Environmental Protection: Moisture proof and salt water resistant and vibration proof
Distance from Mounting Shoulder to Front Face: 0.658 in. min – 0.707 in. max
Mounting Facility Thickness: 0.062 in. min – 0.187 in. max
Threaded Device Type: Back shell and mounting bushing
Mating End Quantity: 1
Contact Position Arrangement Style: 16-26 single mating end
Contact Removability: Removable single mating end single contact grouping
Contact Maximum AC Voltage Rating in Volts: 1000.0 single mating end single contact grouping
Polarization Method: Keyway or multiple keyway
Insert Position in DEG: 60.0
Terminal Type: Crimp single mating end single contact grouping
Shell Material: Aluminum alloy 6061
Shell Surface Treatment: Nickel
Shell Surface Treatment Document and Classification: MIL-C-26074 class 3, grade B mil spec single treatment response
Shell Material Document and Classification: QQ-A-367, T6 fed spec single material response
Included Contact Quantity: 26 single mating end single contact grouping
Bushing Accommodation Hole Shape: Round W/flat
Included Contact Type: Round socket single mating end single contact grouping
Precious Material and Location: Contact surfaces gold
Precious Material and Weight: 0.026 gold grains, troy
Precious Material: GOLD
Connector Locking Method: Bayonet pin
Thread Quantity per Inch: 20 and 18
Nominal Thread Size: 1.000 in. and 1.125 in.
Terminal Location: Back single mating end single contact grouping
Contact Surface Treatment: Gold single mating end single contact grouping and nickel single mating end single contact grouping
Alternate Part Numbers: MIL-C-26482, MIL-DTL-26482, MS3474L16-26SW
NSN Numbers associated with PN: 5935-01-112-5439
AVBOX US Certificate of Conformance: This product comes with an AVBOX US Certificate of Conformance (CoC), assuring that the part(s) meet specified design, quality, and regulatory standards at the time of manufacture, providing confirmation of compliance and adherence to applicable aviation requirements.
Part Numbers, Alternates & Reference Info: We ship the exact part number shown in the product title/description when in stock. Any NSNs or alternate part numbers listed are for traceability/reference only. If a compatible alternate is the only option available, we will contact you before shipping to confirm acceptance. Specifications are compiled from multiple sources and provided for convenience; always verify fit, tolerances, and requirements in the official spec sheets and applicable repair manuals/IPCs before purchase. If specific documentation (e.g., 8130 or company CoC/trace) is required, please contact us before ordering. We do not provide usage/support guidance—refer to the manuals. Ordering the wrong part can extend lead times and result in aircraft downtime.
