MS3116F14-19SX - CONNECTOR, PLUG, ELECTRICAL, NEW SURPLUS, SOLD PER EACH, NSN: 5935-01-108-4485, NIIN: 11084485

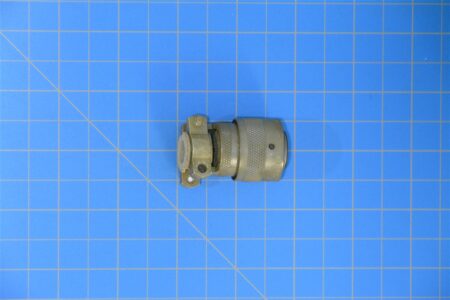

MS3116F14-19SX - CONNECTOR, PLUG, ELECTRICAL

NSN: 5935-01-108-4485, NIIN: 11084485
New Surplus, Sold Per Each

---

A connector plug is the movable, typically male part of an electrical connector. It features prongs, pins, or other conductive elements designed to be inserted into a mating socket or receptacle to establish an electrical connection between circuits or devices.

Specifications

Body Style: Straight Shape, Internal Coupling
Protection: Moisture Proof And Salt Water Resistant And Vibration Proof
Terminal Type: Crimp Single Mating End Single Contact Grouping
Contact Surface: Gold Single Mating End Single Contact Grouping And Nickel Single Mating End Single Contact Grouping
Precious Material: Gold
Shell Material: Aluminum Alloy
Shell Surface Treatment: Cadmium
Overall Diameter: 1.183" Max
Overall Length: 1.230" Max
Contact Arrangement Style: 14-19 Single Mating End
Contact Quantity: 19 Single Mating End Single Contact Grouping
Contact Type: Round Socket Single Mating End Single Contact Grouping
Locking Method: Bayonet Latch
Mating End Quantity: 1
Max Ac Voltage: 1000.0 Single Mating End Single Contact Grouping
Polarization Method: Keyway Or Multiple Keyway
Shell Type: Solid
Contact Removal: Removable Single Mating End Single Contact Grouping
Precious Material Location: Contact Surfaces Gold
Precious Material Weight: 0.019 Gold Grains, Troy
Terminal Location: Back Single Mating End Single Contact Grouping

Part Number Info

Part Number: MS3116F14-19SX
Unpunctuated: MS3116F1419SX
NSN: 5935-01-108-4485
NIIN: 11084485

Accompaning Documents

AVBOX US Certificate of Conformance: This product comes with an AVBOX US Certificate of Conformance (CoC), assuring that the part(s) meet specified design, quality, and regulatory standards at the time of manufacture, providing confirmation of compliance and adherence to applicable aviation requirements.

Condition and Unit of Sale

New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.

Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.

Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.

---
