MS24255-16 - CONTACT, ELECTRICAL, NEW SURPLUS, SOLD PER EACH, NSN: 5999-00-892-8156, NIIN: 8928156

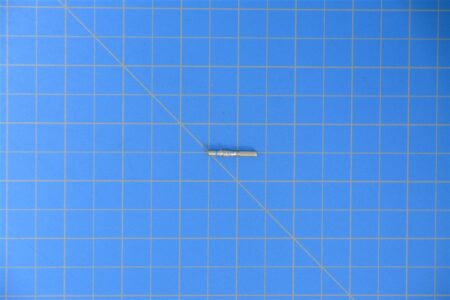

MS24255-16 - CONTACT, ELECTRICAL

NSN: 5999-00-892-8156, NIIN: 8928156
New Surplus, Sold Per Each

---

Specifications

Crimp Tool Number: M22520/1-01
Style/Shape: Socket Contact
Surface Treatment: Rhodium Contact
Material: Copper Alloy
Material: Copper Alloy
Precious Material: Rhodium
Cable Entrance Diameter: 0.085" Min - 0.087" Max
Overall Diameter: 0.144" Min - 0.148" Max
Overall Length: 0.844" Nom
Pin Accommodation Diameter: 0.065" Min - 0.068" Max
Pin Accommodation Length: 0.290" Min
Identification Code Color: Red And Yellow And Violet
Mounting Method: Any Acceptable
Terminal Type & Quantity: 1 Crimp Axially At One End

Part Number Info

Part Number: MS24255-16
Unpunctuated: MS2425516
NSN: 5999-00-892-8156
NIIN: 8928156

Accompaning Documents

AVBOX US Certificate of Conformance: This product comes with an AVBOX US Certificate of Conformance (CoC), assuring that the part(s) meet specified design, quality, and regulatory standards at the time of manufacture, providing confirmation of compliance and adherence to applicable aviation requirements.

Condition and Unit of Sale

New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.

Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.

Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.

---
