MS21919WDG3 - CLAMP, LOOP, NEW SURPLUS, SOLD PER EACH, NSN: 5340-00-291-5322, NIIN: 2915322

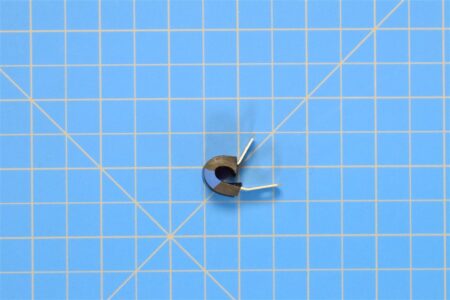

MS21919WDG3 - CLAMP, LOOP

NSN: 5340-00-291-5322, NIIN: 2915322
New Surplus, Sold Per Each

---

A Loop Clamp is a U-shaped fastening device designed to secure cables, hoses, or tubing to surfaces. It features a looped body with a mounting hole for attachment, providing stability, strain relief, and vibration resistance in aerospace, automotive, and industrial applications.

Specifications

Hole Type: Round, Unthreaded
Protection: Weather Resistant
Style/Shape: Offset Mount
Surface Treatment: Chromate Band
Material Thickness: 0.032" Nom
Material: Rubber Chloroprene Class Cr Cushion
Diameter: 0.204" Nom
Inner Diameter Loop: 0.173" Min - 0.203" Max
Loop To Mount Distance: 0.483" Min - 0.513" Max
Loop To Tongue Distance: 0.716" Nom
Overall Width: 0.490" Min - 0.510" Max

Part Number Info

Part Number: MS21919WDG3
Unpunctuated: MS21919WDG3
NSN: 5340-00-291-5322
NIIN: 2915322

Potential Alternates: 115105, 2091401-5, MS21919-3, MS21919-WDG3, MS21919DG3, 5C, 8036, 5340PL0643399, 5340PL1667994, -651679, 0146314S00, 10117323, AS21919WDG3, SAE-AS21919

Replaces Cancelled NSN: 5340-00-726-9819, 5340-00-664-8175, 5340-00-221-3016

New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.

Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.

Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.
