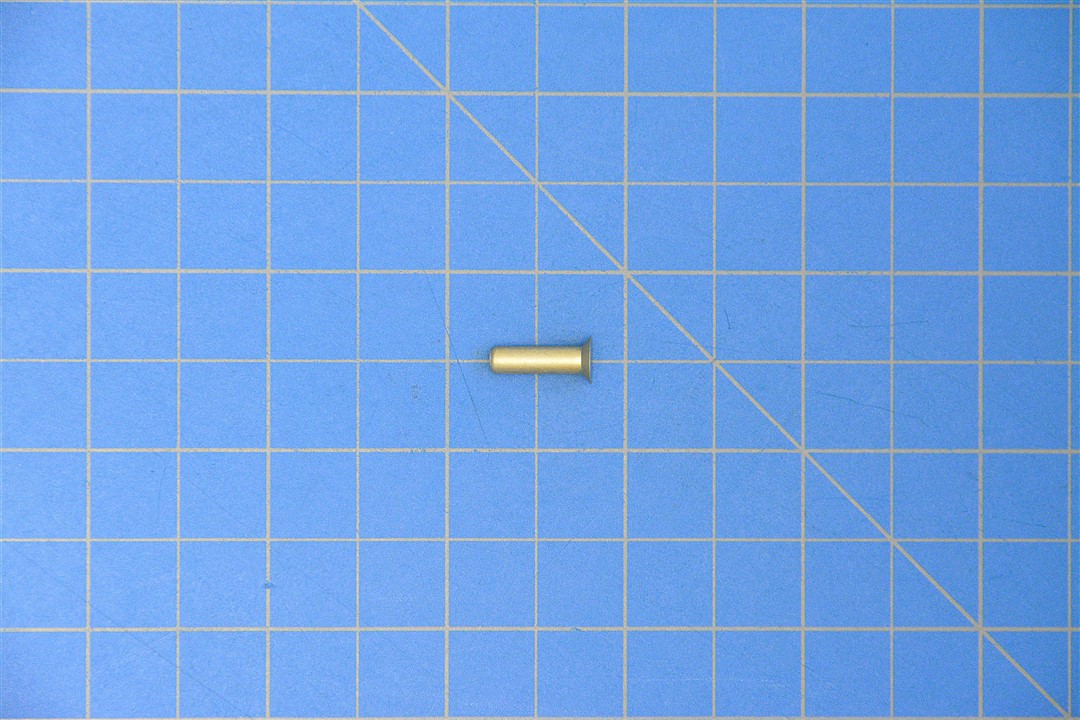

MS20426AD5-9 - RIVET, SOLID
NSN: 5320-00-117-6886, NIIN: 1176886
New Surplus, Sold In Bulk - Priced By Weight, 1 Pound
A solid rivet is a one-piece fastener with a head on one end, deformed on the other end to join materials together, commonly used in structural applications.
Specifications
Head Style: Flush (Flat) Countersunk (Included Angle - Less Than 135° W Or W/O Chamfer)
Shank Style: Straight W/Radius Chamfered Tip
Surface Treatment: Anodize Or Oxide Film
Material: Aluminum Alloy
Countersink Angle: 99.5° Min - 100.5° Max
Fastener Length: 0.552" Min - 0.572" Max
Grip Length: 0.318Mm Nom And 0.338Cm Nom
Head Major Diameter: 0.282" Min - 0.290" Max
Shank Diameter: 0.155" Min - 0.159" Max
Part Number Info
Part Number: MS20426AD5-9
Unpunctuated: MS20426AD59
NSN: 5320-00-117-6886
NIIN: 1176886
Potential Alternates: AN426AD5-9, 5320PL0789633, 5320PL1810903, 0600-339
Replaces Cancelled NSN: 5320-00-882-6419, 5320-00-718-7779, 5320-00-619-4108
New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.
Product Testing: Every product is inspected for accuracy, quality, and functionality before shipping to meet our high standards.
Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.
