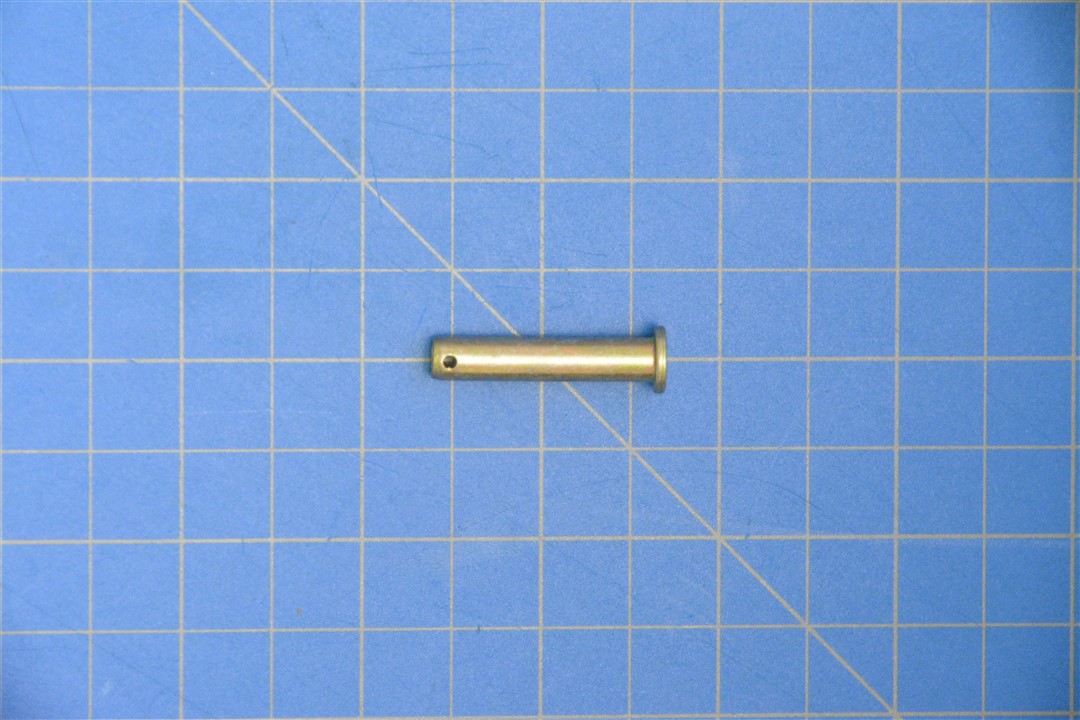

MS20392-3C35 - CLEVIS PIN, CADMIUM AND CHROMATE STEEL
New, Sold Per Each
Type: Clevis Pin
A clevis pin is a cylindrical pin with a head on one end and a hole for a cotter pin on the other, used in conjunction with clevis fasteners.
Standard: Military Standard / MS Standard
MS standards are developed by the U.S. Department of Defense to ensure uniformity and reliability in military and aerospace components, covering a wide range of specifications for fasteners, connectors, and other critical parts.
Series: MS20392
Material: Steel
Surface: Cadmium And Chromate
Details/Features: Pan No. 2 (R1 Not Required In Item Description) Head
Chamfer Length: 0.062" (Nominal)
Diameter: 0.246"-0.248"
Diameter (First Hole): 0.076"-0.086"
Height: 0.062" (Nominal)
Holes: One End Drilled
Chamfer Angle: 15.0° (Nominal)
Diameter (Head): 0.375" (Nominal)
Shear Strength: 7,360 Double Pound
Style: Straight
Length (Under Head ): 1.225"-1.245"
NSN: 5315-00-812-1236
Minimized: MS203923C35
Possible Alternatives: E.C.A Etablissement Central: 5315008121236, E.C.A Etablissement Central DES: 5315-812-1236, Military Standards: MS20392-3C35, National Aerospace Standards: MS20392-3C35, National Aerospace Standards: NASM5673, Paeaeesikunta: 10122734
