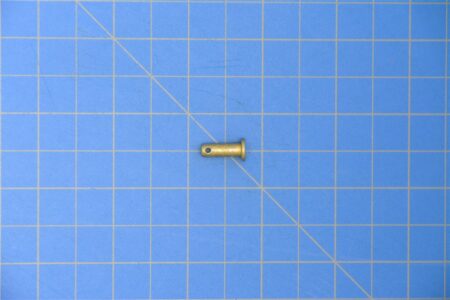

MS20392-2S13 - PIN, STRAIGHT, HEADED
NSN: 5315-01-491-6868, NIIN: 14916868
New Surplus, Sold Per Each
A straight pin is a cylindrical, unthreaded fastener typically used to align, join, or secure two or more components in mechanical assemblies. It is characterized by its simple, straight design with uniform diameter along its length and often features chamfered ends to facilitate easy insertion.
Specifications
Head Style: Pan
Hole Arrangement Style: One End Drilled
Style/Shape: Straight
Material: Steel
Diameter: 0.188" Nom
Distance From Centerline Of Hole To End Of Pin: 0.078" Nom
First Hole Diameter: 0.076" Nom
Overall Height: 0.046" Nom
Pin Chamfer Angle: 15.0° Nom
Pin Head Diameter: 0.312" Nom
Under Head Length: 0.360" Nom
Part Number Info
Part Number: MS20392-2S13
Unpunctuated: MS203922S13
NSN: 5315-01-491-6868
NIIN: 14916868
Potential Alternates: NASM5673
New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.
Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.
Product Testing: Every product is inspected for accuracy, quality, and functionality before shipping to meet our high standards.
Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.
