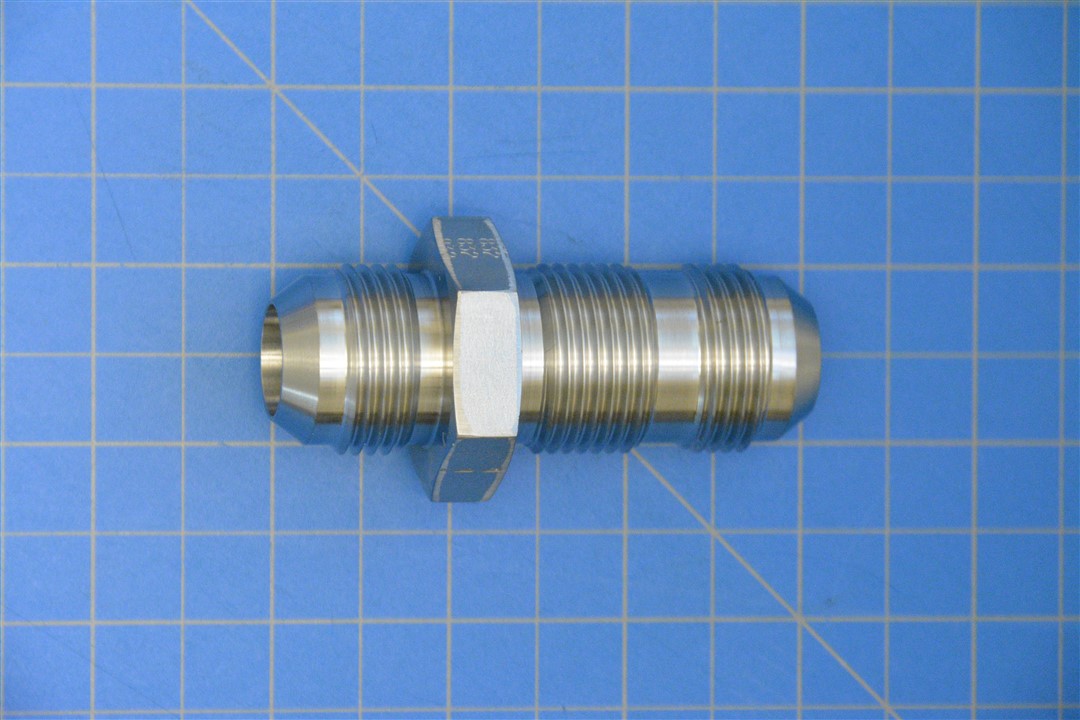

AN832-12J - ADAPTER, STRAIGHT, TUBE TO BOSS
NSN: 4730-00-805-1407, NIIN: 8051407
New Surplus, Sold Per Each
A Straight Adapter is a connector used to join two components with different thread types, sizes, or connection styles in a straight, in-line configuration. Commonly used in hydraulic, pneumatic, and fluid systems, it ensures a secure, leak-tight connection between tubes, hoses, or fittings.
Specifications
Connection Style: Flared (Tube) All Ends
Connection Type: Threaded External Tube All Ends
Style/Shape: Flared W/ Bulkhead
Surface Treatment: Passivate
Material: Steel
Nominal Overall Length: 3.031"
Seat Angle: 37.0° All Ends
Tube Outer Diameter Accomodated: 0.750" All Ends
Tube Outer Diameter Accomodated: 0.750" First End Bulkhead
Thread Class: 3A All Ends
Thread Class: 3A First End Bulkhead
Thread Quantity Per Inch: 12 All Ends
Thread Quantity Per Inch: 12 First End Bulkhead
Thread Series Designator: Unj All Ends
Thread Series Designator: Unj First End Bulkhead
Thread Size: 1.062" All Ends
Thread Size: 1.062" First End Bulkhead
Operating Temp Max: -65.0° F Second Response
Operating Temp Max: 250.0° F First Response
Part Number Info
Part Number: AN832-12J
Unpunctuated: AN83212J
NSN: 4730-00-805-1407
NIIN: 8051407
Potential Alternates: AN832-12C, 761-509-9062, 4730PL0961442, MS24393C12, MS24393J12, MS51520B12S, 12WTXSS, AS4841, AS5406, AS5406J12, SAE-AS4841, 9026187
Replaces Cancelled NSN: 4730-00-928-3449, 4730-00-625-5687
New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.
Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.
Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.
