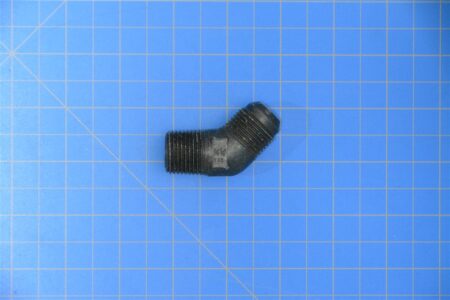

AN823-10 - ELBOW, PIPE TO TUBE, NSN: 4730-00-287-0265, NIIN: 2870265

AN823-10 - ELBOW, PIPE TO TUBE

NSN: 4730-00-287-0265, NIIN: 2870265
New Surplus, Sold Per Each

---

An elbow fitting is a plumbing or piping component used to change the direction of flow within a system, typically at a 90-degree or 45-degree angle. It provides flexibility and efficiency in routing pipes or tubes in constrained spaces.

Specifications

Connection Style: Flared (Tube) First End
Connection Style: Plain (Pipe) Second End
Connection Type: Threaded External Pipe Second End
Connection Type: Threaded External Tube First End
Surface Treatment: Anodize
Material: Aluminum Alloy
Leg Length: 1.094" min First End And 1.141" max First End
Leg Length: 1.156" nom Second End
Seat Angle: 37.0° First End
Thread Class: 3A First End
Thread Series Designator: Npt Second End
Thread Series Designator: Unjf First End
Thread Size: 0.500" Second End
Thread Size: 0.875" First End

Part Number: AN823-10
Unpunctuated: AN82310
NSN: 4730-00-287-0265
NIIN: 2870265

Potential Alternates: 7350-10, 314211242, 213711-10D, 220D1, 7350-10, AN823-10D, MS20823, MS20823-10D

AN standards, originally developed by the U.S. Army and Navy, cover a variety of components such as bolts, nuts, and fittings, ensuring compatibility and reliability in military and aerospace systems.

New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.

Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.

Product Testing: Every product is inspected for accuracy, quality, and functionality before shipping to meet our high standards.

Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.
