AN814-4D - PLUG, MACHINE THREAD, NSN: 5365-00-287-0094, NIIN: 2870094

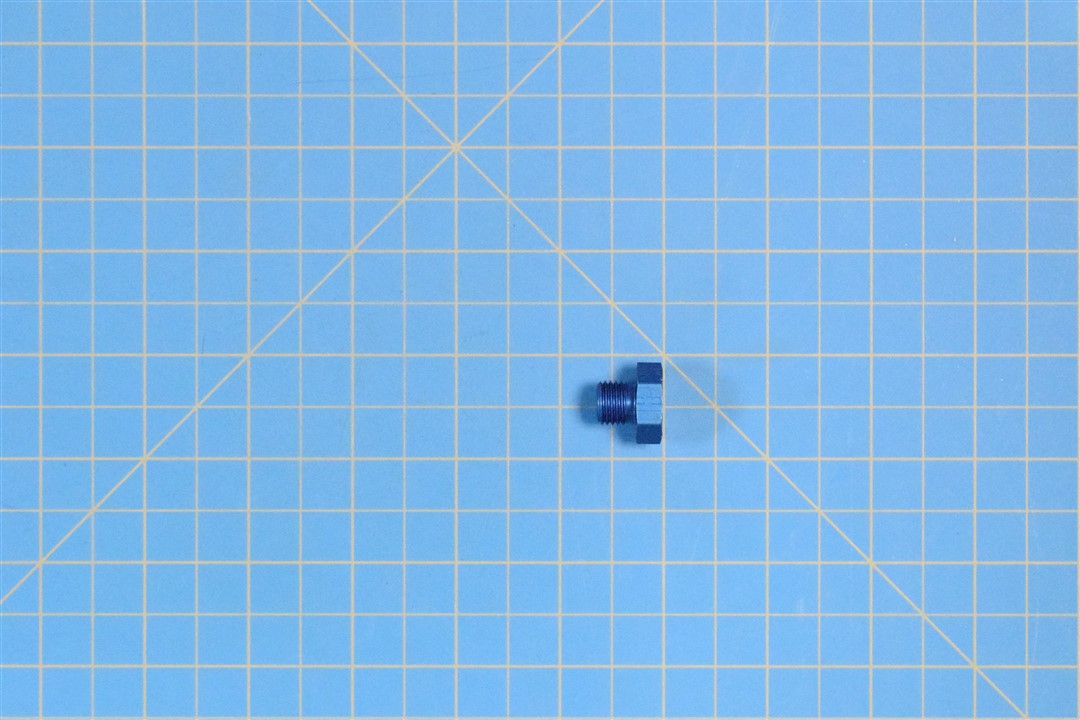

AN814-4D - PLUG, MACHINE THREAD

NSN: 5365-00-287-0094, NIIN: 2870094
New Surplus, Sold Per Each

---

A Plug, Tube Fitting is a sealing component used to close the end of a tube or fitting, preventing fluid or gas leakage. Commonly used in hydraulic, pneumatic, and fuel systems, it ensures a secure, leak-tight closure for unused ports or open tube ends.

Specifications

Style/Shape: Plug, Machine W/Bleeder Holes
Surface Treatment: Anodize
Material: Aluminum Alloy
Bleeder Hole Center To Threaded End Distance: 0.157" min - 0.219" max
Bleeder Hole Diameter: 0.062" nom
Body Core Diameter: 0.171" nom
Core Depth: 0.297" min - 0.312" max
Head Height: 0.250" nom
Overall Length: 0.625" nom
Seat Angle: 45.0° Rees
Thread Class: 3A External
Thread Direction: Right-Hand External
Thread Length: 0.300" nom External
Thread Series Designator: Unf External
Thread Size: 0.438" External
End Item: Armored Multi-Purpose Vehicle (Ampv)
Connection Style: Plain

Part Number: AN814-4D
Unpunctuated: AN8144D
NSN: 5365-00-287-0094
NIIN: 2870094

Potential Alternates: 5413975, 5364002870094, 033584, 10118479, 103919, 14442, 19-10-008-104, 1910008104, 3446443-5, 5863-0411, 8805903, 93D48, AN814-40, AS5169-D04, AS5169D04, MILF5509A, SAE-AS4875
Replaces Cancelled NSN: 4730-00-202-8101

AN standards, originally developed by the U.S. Army and Navy, cover a variety of components such as bolts, nuts, and fittings, ensuring compatibility and reliability in military and aerospace systems.

New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.

Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.

Product Testing: Every product is inspected for accuracy, quality, and functionality before shipping to meet our high standards.

Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.
