AN743-13 - BRACKET, ANGLE, NSN: 5340-00-721-8182, NIIN: 7218182

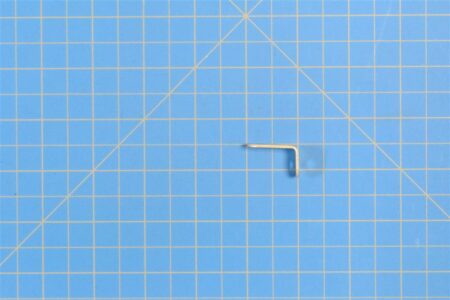

AN743-13 - BRACKET, ANGLE

NSN: 5340-00-721-8182, NIIN: 7218182
New Surplus, Sold Per Each

---

Angle brackets are L-shaped metal or plastic supports used to reinforce joints, mount objects, or provide structural stability at a 90-degree angle. Commonly used in construction, furniture assembly, and industrial applications, they ensure secure connections between surfaces.

Specifications

Style/Shape: Angle
Surface Treatment: Anodize
Material: Aluminum Alloy
Angle Of First Leg: 90.0° nom
Edge To Hole Center (Length) - First Leg: 0.230" min - 0.270" max
Edge To Hole Center (Width) - First Leg: 0.230" min - 0.270" max
End Radius Of First Leg: 0.230" min - 0.270" max
End Radius Of Second Leg: 0.230" min - 0.270" max
Hole Arrangement Style - First Leg: One Hole
Hole Diameter On First Leg: 0.194" min - 0.214" max
Length Of First Leg: 0.615" min - 0.635" max
Length Of Second Leg: 0.990" min - 1.110" max
Relationship Of Second Leg To First: Identical
Style Of First Leg: End Radius
Thickness Of First Leg: 0.053" min - 0.073" max
Thickness Of Second Leg: 0.053" min - 0.073" max
Width Of First Leg: 0.490" min - 0.510" max
Width Of Second Leg: 0.490" min - 0.510" max

Part Number: AN743-13
Unpunctuated: AN74313
NSN: 5340-00-721-8182
NIIN: 7218182

Potential Alternates: 8521063, 10117437, 015-2930-020, 5340PL0845489, AN7431-13, SAE-AS7431, Z00.N7249060213
Replaces Cancelled NSN: 5340-01-583-5674

AN standards, originally developed by the U.S. Army and Navy, cover a variety of components such as bolts, nuts, and fittings, ensuring compatibility and reliability in military and aerospace systems.

New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.

Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.

Product Testing: Every product is inspected for accuracy, quality, and functionality before shipping to meet our high standards.

Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.
