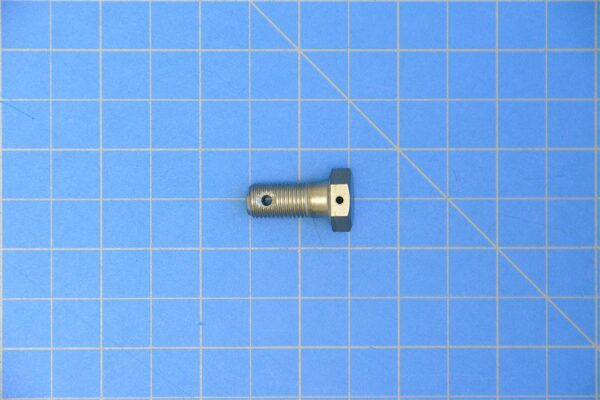

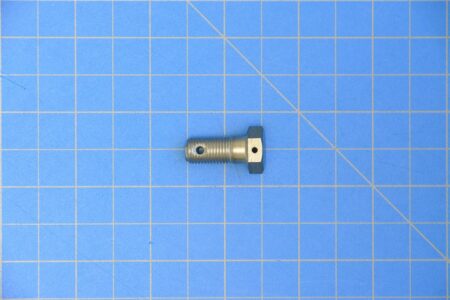

AN6CH6 - BOLT, MACHINE
NSN: 5306-00-725-6614, NIIN: 7256614
New Surplus, Sold Per Each
A machine bolt is a heavy-duty fastener with a hexagonal head and a fully or partially threaded shank, designed for securing two or more components together.
Specifications
Head Style: Hexagon
Hole Configuration Style: Hexagon Flats
Hole Type: Drilled
Surface Treatment: Passivate
Material: Steel
Fastener Length: 0.828" Nom
Grip Length: 0.188" Nom
Head Height: 0.203" Min - 0.235" Max
Head Surface To Shank Hole Center: 0.626" Nom - First Hole
Hole Diameter: 0.070" Nom
Shank Unthreaded Hole Diameter: 0.106" Nom - First Hole
Tensile Strength Min: 125000 Pounds Per Square Inch
Width Between Flats: 0.553" Min - 0.565" Max
Thread Class: 3A
Thread Diameter: 0.375"
Thread Direction: Right-Hand
Thread Length: 0.640" Min
Thread Quantity Per Inch: 24
Thread Series Designator: Unf
Features Provided: Finished Head
Hole Quantity: 1
Part Number Info
Part Number: AN6CH6
Unpunctuated: AN6CH6
NSN: 5306-00-725-6614
NIIN: 7256614
Potential Alternates: MILB6812
New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.
Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.
Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.
