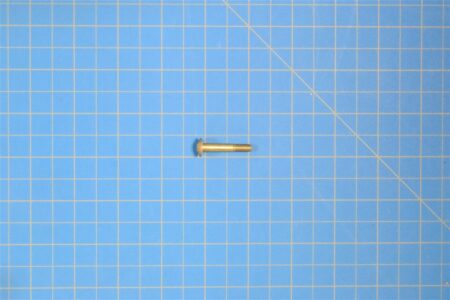

AN525-10R18 - SCREW, CAP, SOCKET HEAD, NSN: 5305-00-061-8231, NIIN: 618231

AN525-10R18 - SCREW, CAP, SOCKET HEAD

NSN: 5305-00-061-8231, NIIN: 618231
New Surplus, Sold Per Each

Specifications

Head Style: Round Extended - Washer
Surface Treatment: Cadmium
Material: Steel
Fastener Length: 1.125" nom
Head Diameter: 0.375" nom
Head Height: 0.094" nom
Tensile Strength min: 125000 psi
Washer Diameter Extended: 0.437" nom
Washer Thickness Extended: 0.025" nom
Thread Class: 3A
Thread Diameter: 0.190"
Thread Direction: Right-Hand
Thread Length: 0.407" min
Thread Quantity Per Inch: 32
Thread Series Designator: Unf
Internal Drive Style: Cross Recess Type 1
Locking Feature: Patchs Or Strips

Part Number: AN525-10R18
Unpunctuated: AN52510R18
NSN: 5305-00-061-8231
NIIN: 618231

Potential Alternates: NK525-10R18
Replaces Cancelled NSN: 5305-00-061-8230

AN standards, originally developed by the U.S. Army and Navy, cover a variety of components such as bolts, nuts, and fittings, ensuring compatibility and reliability in military and aerospace systems.

New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.

Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.

Product Testing: Every product is inspected for accuracy, quality, and functionality before shipping to meet our high standards.

Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.
