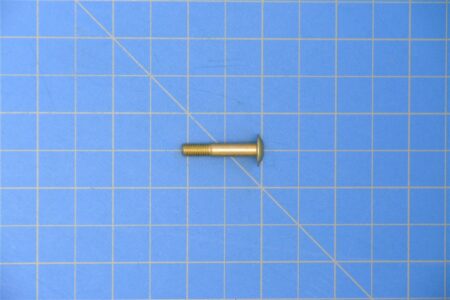

AN525-10R16 - SCREW, MACHINE
NSN: 5305-00-180-3326, NIIN: 1803326
New Surplus, Sold Per Each
A machine screw is a threaded fastener designed for precise assembly, typically used with pre-tapped holes or nuts. It withstands shear force, which is the force that causes two connected surfaces to slide past each other in opposite directions.
Specifications
Head Style: Round Extended - Washer
Internal Drive Style: Slot
Screw Surface Treatment: Cadmium Or Zinc
Screw Material: Steel
Fastener Length: 0.969" Min - 1.031" Max
Head Diameter: 0.375" Nom
Head Height: 0.089" Min - 0.099" Max
Washer Diameter Extended: 0.437" Nom
Washer Thickness Extended: 0.030" Nom
Thread Class: 3A
Thread Diameter: 0.190"
Thread Direction: Right-Hand
Thread Length: 0.344" Min
Thread Quantity Per Inch: 32
Thread Series Designator: Unf
Part Number Info
Part Number: AN525-10R16
Unpunctuated: AN52510R16
NSN: 5305-00-180-3326
NIIN: 1803326
Potential Alternates: 11011112-26, 5305001803326, MILS7839, NASM525-10R16, S5006-10R16
Replaces Cancelled NSN: 5305-01-014-2201
