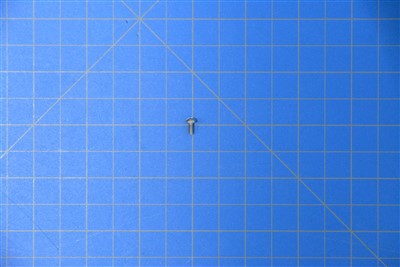

AN515C4-4 - SCREW, CLOSE TOLERANCE, NSN: 5305-00-505-3382, NIIN: 5053382

AN515C4-4 - SCREW, CLOSE TOLERANCE

NSN: 5305-00-505-3382, NIIN: 5053382
New Surplus, Sold Per Each

---

A close tolerance screw is a precision fastener manufactured with tighter dimensional tolerances than standard screws. It ensures a snug fit in pre-drilled holes, minimizing movement and enhancing joint strength.

Specifications

Head Style: Pan
Surface Treatment: Passivate
Material: Iron Alloy
Fastener Length: 1.199" min - 1.229" max
Grip Diameter: 0.1885" min - 0.1895" max
Grip Length: 0.928" min - 0.948" max
Head Diameter: 0.357" min - 0.373" max
Head Height: 0.122" min - 0.133" max
Tensile Strength min: 160000 psi
Thread Class: 3A
Thread Diameter: 0.190"
Thread Direction: Right-Hand
Thread Length: 0.251" min - 0.301" max
Thread Quantity Per Inch: 32
Thread Series Designator: Unjf
Internal Drive Style: High-Torque

Part Number: AN515C4-4
Unpunctuated: AN515C44
NSN: 5305-00-505-3382
NIIN: 5053382

Potential Alternates: AN515C-4-4, AN515C4-04, LS15234C3-15

AN standards, originally developed by the U.S. Army and Navy, cover a variety of components such as bolts, nuts, and fittings, ensuring compatibility and reliability in military and aerospace systems.

New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.

Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.

Product Testing: Every product is inspected for accuracy, quality, and functionality before shipping to meet our high standards.

Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.
