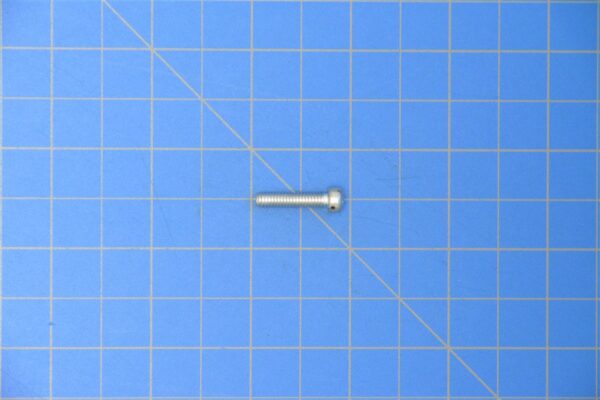

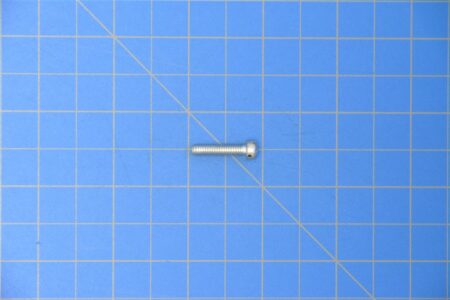

AN503-8-12 - SCREW, MACHINE
NSN: 5305-00-145-7012, NIIN: 1457012
New Surplus, Sold Per Each
A machine screw is a threaded fastener designed for precise assembly, typically used with pre-tapped holes or nuts. It withstands shear force, which is the force that causes two connected surfaces to slide past each other in opposite directions.
Specifications
Head Hole Configuration Style: Round
Head Style: Fillister
Internal Drive Style: Cross Recess Type 1
Screw Surface Treatment: Cadmium
Screw Material: Steel
Fastener Length: 0.750" Nom
Head Diameter: 0.250" Min - 0.270" Max
Head Height: 0.106" Min - 0.113" Max
Hole Diameter: 0.050" Nom
Tensile Strength Min: 125000 Pounds Per Square Inch
Thread Class: 3A
Thread Diameter: 0.164"
Thread Direction: Right-Hand
Thread Length: 0.594" Min - 0.719" Max
Thread Quantity Per Inch: 32
Thread Series Designator: Unc
Hole Quantity: 1
Part Number Info
Part Number: AN503-8-12
Unpunctuated: AN503812
NSN: 5305-00-145-7012
NIIN: 1457012
Potential Alternates: AC503-8-12, 189529
Replaces Cancelled NSN: 5305-00-997-3123, 5305-00-271-7779
