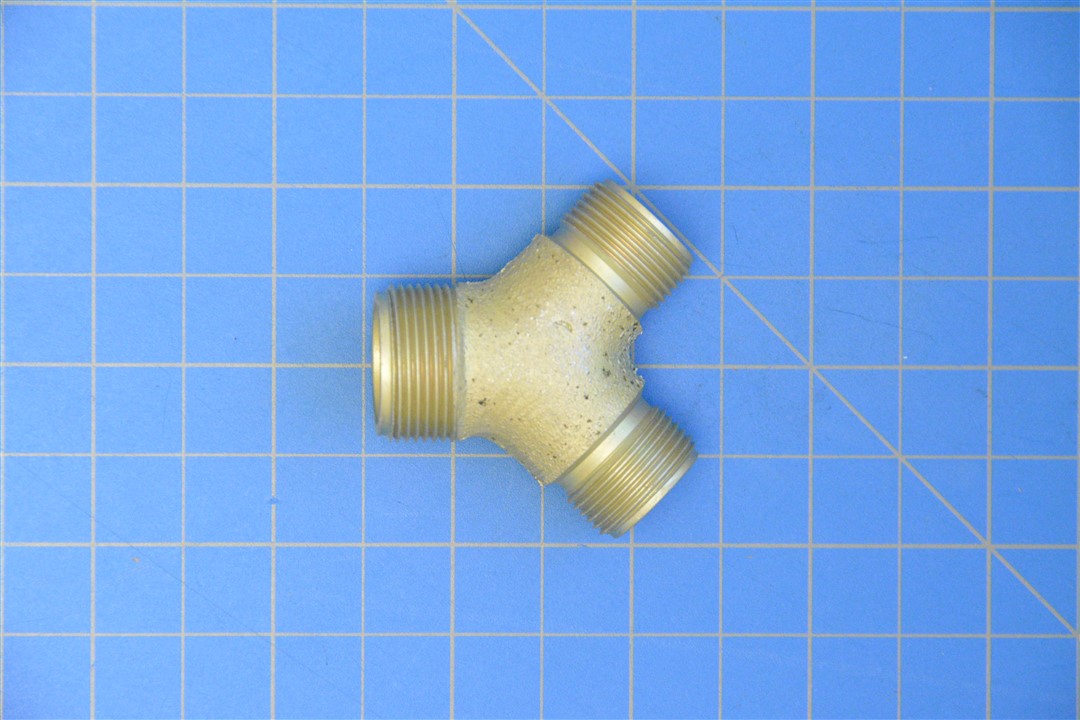

AN3250B2 - WYE, ELECTRICAL CONDUIT

NSN: 5975-00-280-8999, NIIN: 2808999
New Surplus, Sold Per Each

A Wye Electrical Conduit Fitting is a Y-shaped connector designed to split or merge electrical conduit pathways at a 45-degree angle. It allows for the branching of electrical wiring into two separate directions while maintaining a smooth cable flow, reducing stress and preventing damage.

Specifications

Accomodated Conduit Type: Rigid Metallic Thickwall
End Type: External-Thread
Style/Shape: Typical
Surface Treatment: Cadmium
Material: Brass
Angle: 45.0° Rees
Leg Length: 0.750" nom First End
Leg Length: 1.000" nom Second End
Leg Length: 1.000" nom Third End
Trade Size: 0.750" Second End
Trade Size: 0.750" Third End
Thread Class: 2A First End
Thread Length: 0.313" nom First End
Thread Series Designator: Unef First End
Thread Size: 0.875" First End

Part Number: AN3250B2
Unpunctuated: AN3250B2
NSN: 5975-00-280-8999
NIIN: 2808999

Potential Alternates: 148-6B0375, A24976
Replaces Cancelled NSN: 5975-00-522-7178

AN standards, originally developed by the U.S. Army and Navy, cover a variety of components such as bolts, nuts, and fittings, ensuring compatibility and reliability in military and aerospace systems.

New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.

Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.

Product Testing: Every product is inspected for accuracy, quality, and functionality before shipping to meet our high standards.

Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.
