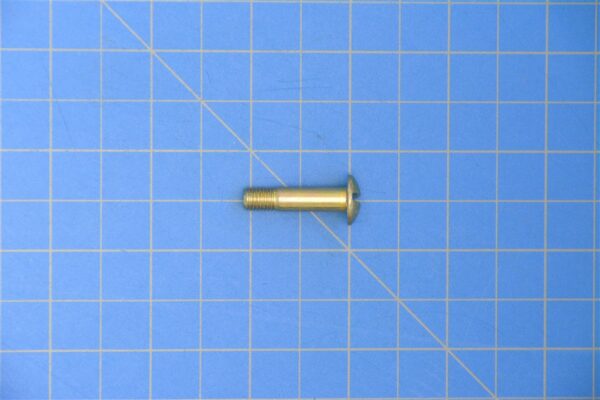

AN24-16A - BOLT, CLEVIS
NSN: 5306-00-156-2285, NIIN: 1562285
New Surplus, Sold Per Each
A Clevis Bolt is a specialized fastener with an unthreaded shank and a cross-drilled hole near the end, designed to be secured with a cotter pin. Commonly used in aircraft, automotive, and construction applications, it provides a pivot point for mechanical linkages and allows rotational movement while ensuring a secure connection.
Specifications
Head Style: Button
Internal Drive Style: Slot
Surface Treatment: Cadmium And Chromate
Material: Steel
Diameter Groove: 0.191" Min - 0.201" Max
Fastener Length: 1.031" Nom
Head Diameter: 0.500" Nom
Head Height: 0.125" Nom
Part Number Info
Part Number: AN24-16A
Unpunctuated: AN2416A
NSN: 5306-00-156-2285
NIIN: 1562285
Potential Alternates: 0-1659J
Replaces Cancelled NSN: 5306-00-722-4677, 5306-00-560-5641
New Surplus: These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.
Sold Per Each: This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.
Alternate Part Numbers: Due to the nature of ever-evolving part numbering structure, multiple part numbers may meet the same specifications and performance standards. If only an alternate part number is available, we will contact you to confirm compatibility. We strongly recommend consulting the appropriate repair manuals to ensure accuracy before using an alternate part.
