AN175-32A - CLOSE TOLERANCE BOLT, NSN: 5306-00-144-4059, NIIN: 001444059

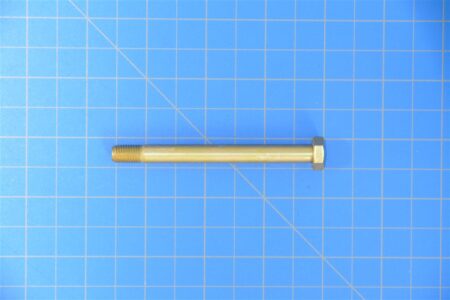

AN175-32A - CLOSE TOLERANCE BOLT

New Surplus, Sold Per Each, Cadmium And Chromate, Steel

---

AN175 SERIES CLOSE TOLERANCE BOLT

A close tolerance bolt is a type of precision fastener manufactured to strict dimensional tolerances, ensuring a tight fit in high-stress or critical applications. These bolts are designed to minimize movement or play in the bolted joint, providing enhanced alignment and structural integrity.

Specifications

Treatment (Surface): Cadmium And Chromate
Material: Steel
Thread Class: 3A
Thread Direction: Right-Hand
Thread Series: Unf
Threads Per inch: 24
Fastener Length: 3.344" Nominal
Flat Width (Between): 0.490" - 0.502"
Grip Diameter: 0.3112" - 0.3117"
Grip Length: 2.812" Nominal
Head Height: 0.172" - 0.204"
Hole Diameter: 0.070" Nominal
Nominal Thread Diameter: 0.312"
Thread Length: 0.532" Minimum
Holes (Qty): 1
Style (Head): Hexagon
Style (Hole Configuration): Hexagon Longitudinal Hole
Type: Drilled

Part Number Information

Part Number: AN175-32A
Unpunctuated: AN17532A
NSN: 5306-00-144-4059
NIIN: 001444059

Alternate Part Numbers

Department Of The Air Force: AN175-32A (CAGE: 88044), AN175H32A (CAGE: 88044)
Military Specifications: AN175-32A (CAGE: 88044), AN175H32A (CAGE: 88044)
Cancelled NSN: 5306-00-180-2787
Cancelled NIIN: 001802787
Note: Some part numbers may serve as functional alternatives to the original, offering similar specifications and performance; however, prior verification is recommended to ensure suitability for the intended application.

Condition: New Surplus - These parts are classified as new and unused, meaning they have not been installed or placed into service. However, they come without traceability or original manufacturer certifications, which might be required for certain high-level regulatory uses. Our company provides its own Certificate of Conformance (CoC) as a statement of assurance that the parts are in good working condition and have been sourced from reliable channels. These are ideal when the focus is on cost-effectiveness without compromising on quality.

Unit of Sale: Sold Per Each - This item is sold individually, with the price listed for a single unit. Perfect for purchasing the exact quantity needed without the requirement to buy in bulk. For larger quantities, consider reviewing any available bulk pricing options.
