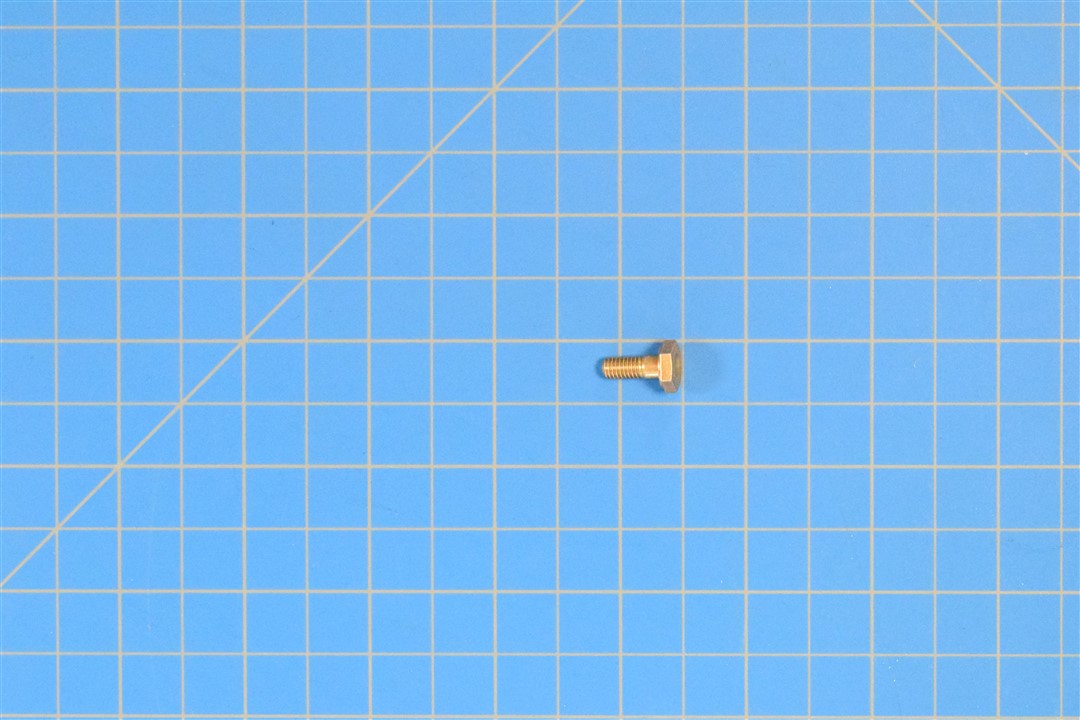

NAS6603-2 – BOLT, SHEAR

Description

NAS6603-2 – BOLT, SHEAR

Specifications

Head Style: Dished Hexagon
Surface Finish: 32.0 Microinches
Surface Finish: 32.0 Microinches – Bearing Surface Of Head
Surface Finish: 32.0 Microinches – Grip
Surface Treatment: Cadmium And Chromate
Material: Steel
Fastener Length: 0.455″ Min – 0.485″ Max
Grip Diameter: 0.1885″ Min – 0.1895″ Max
Grip Length: 0.115″ Min – 0.135″ Max
Head Height: 0.110″ Min – 0.125″ Max
Tensile Strength Min: 160000 Pounds Per Square Inch
Width Between Flats: 0.367″ Min – 0.376″ Max
Thread Class: 3A
Thread Diameter: 0.190″
Thread Direction: Right-Hand
Thread Length: 0.320″ Min – 0.370″ Max
Thread Quantity Per Inch: 32
Thread Series Designator: Unjf

Part Number: NAS6603-2
Unpunctuated: NAS66032

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
