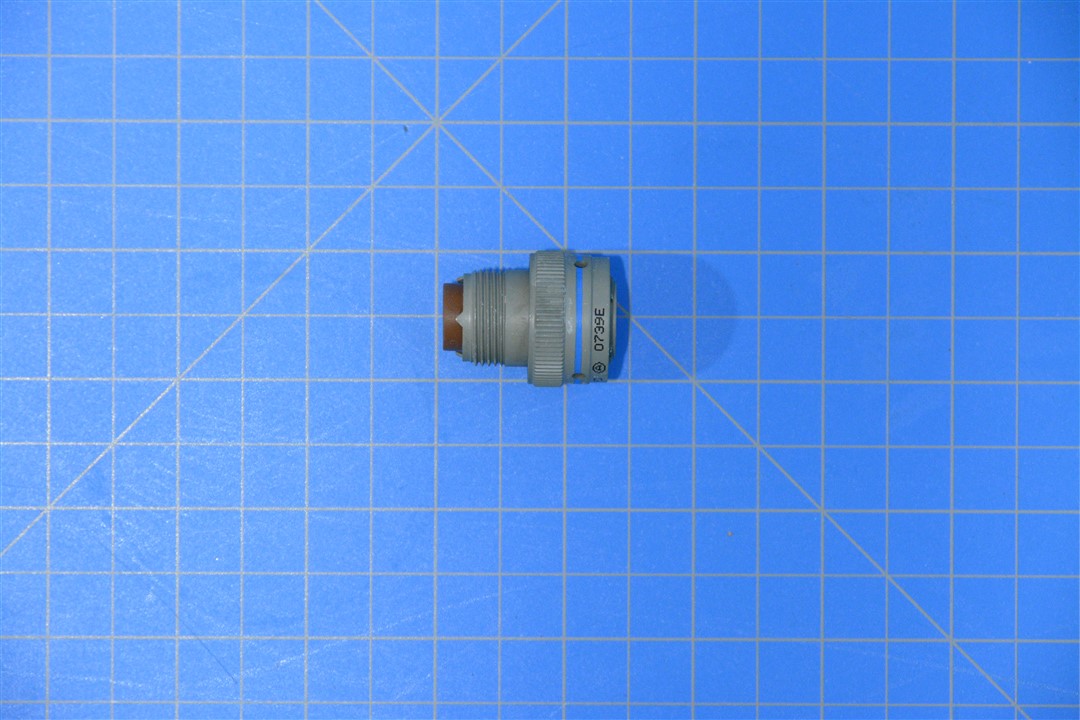

MS3476W12-8S – CONNECTOR, CIRCULAR

Description

MS3476W12-8S – CONNECTOR, CIRCULAR

Specifications

Body Style: Straight Shape, Internal Coupling W/Backshell
Protection: Moisture Proof And Salt Water Resistant And Vibration Proof
Special Features: In Order To Complete The Connector Assembly, The User Must Obtain/Provide The Backshell; Standard Versions May Be Ordered As Nsn 5935-01-184-7189, P/N M85049/52-1-12W For The Straight Style, Or Nsn 5935-01-181-6652, P/N M85049/51-1-12W For The Right Angle Style
Terminal Type: Crimp Single Mating End Single Contact Grouping
Contact Surface: Gold Single Mating End Single Contact Grouping And Nickel Single Mating End Single Contact Grouping
Precious Material: Gold
Shell Material: Aluminum Alloy
Shell Surface Treatment: Cadmium
Overall Diameter: 1.043″ Max
Overall Length: 1.230″ Max
Contact Arrangement Style: 12-8 Single Mating End
Contact Quantity: 8 Single Mating End Single Contact Grouping
Contact Type: Round Socket Single Mating End Single Contact Grouping
Locking Method: Bayonet Latch
Mating End Quantity: 1
Max Ac Voltage: 1000.0 Single Mating End Single Contact Grouping
Polarization Method: Keyway Or Multiple Keyway
Shell Type: Solid
Contact Removal: Removable Single Mating End Single Contact Grouping
Precious Material Location: Contact Surfaces Gold
Precious Material Weight: 0.008 Gold Grains, Troy
Terminal Location: Back Single Mating End Single Contact Grouping

Part Number: MS3476W12-8S
Unpunctuated: MS3476W128S

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
