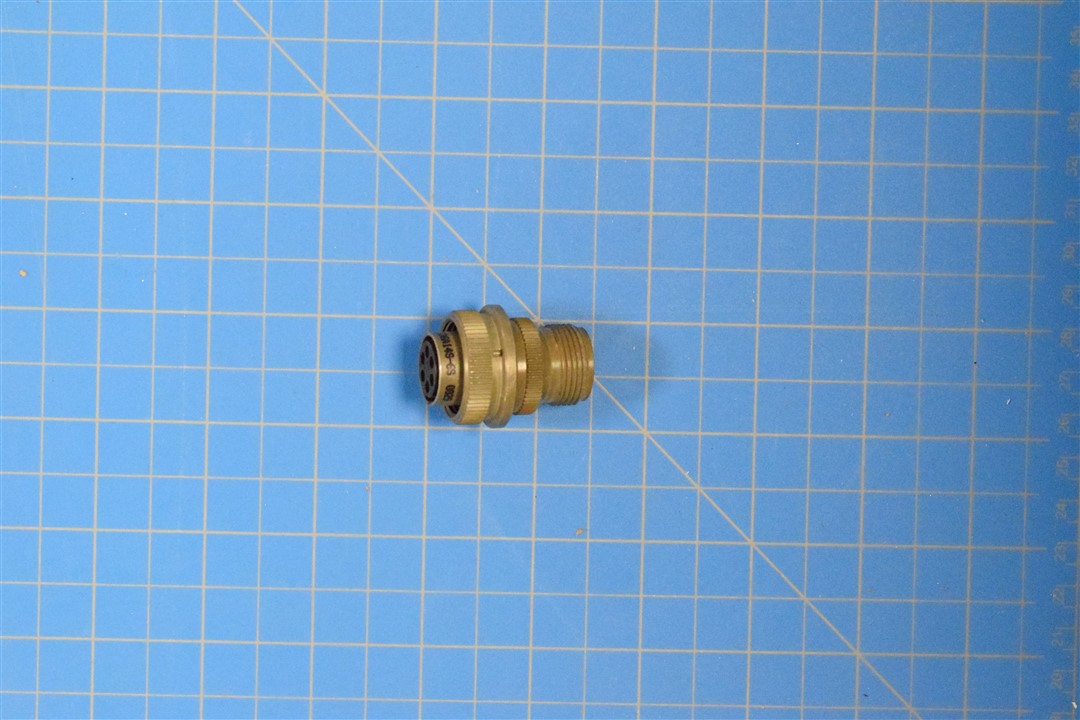

MS3106A14S-6S – CONNECTOR, CIRCULAR

Description

MS3106A14S-6S – CONNECTOR, CIRCULAR

Specifications

Body Style: Straight Shape, Internal Coupling
Protection: Moisture Resistant And Salt Water Resistant And Vibration Resistant
Terminal Type: Solder Well Single Mating End Single Contact Grouping
Contact Surface: Gold And Silver Single Mating End Single Contact Grouping
Precious Material: Gold And Silver
Shell Material: Aluminum Alloy
Shell Surface Treatment: Cadmium
Overall Diameter: 1.156″ Max
Overall Length: 1.688″ Max
Nominal Thread Length: 0.375 Inches0.375″
Thread Class: 2A And 2B
Thread Direction: Right-Hand
Thread Series Designator: Unef
Thread Size: 0.750″ And 0.875″
Contact Arrangement Style: 14S-6, 11-6 Single Mating End
Contact Quantity: 6 Single Mating End Single Contact Grouping
Contact Type: Round Socket Single Mating End Single Contact Grouping
Locking Method: Internallyed Coupling Ring
Mating End Quantity: 1
Max Ac Voltage: 200.0 Single Mating End Single Contact Grouping
Max Current: 22.0 Single Mating End Single Contact Grouping
Max Dc Voltage: 250.0 Single Mating End Single Contact Grouping
Polarization Method: Key, Multiple Key Groove
Shell Type: Solid
Threaded Device Type: Back Shell And Coupling Facility
Contact Removal: Nonremovable Single Mating End Single Contact Grouping
Precious Material Location: Contact Surface Gold And Contact Surface Silver
Precious Material Weight: 0.006 Gold Grains, Troy And 0.006 Silver Grains, Troy
Terminal Location: Back Single Mating End Single Contact Grouping

Part Number: MS3106A14S-6S
Unpunctuated: MS3106A14S6S

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
