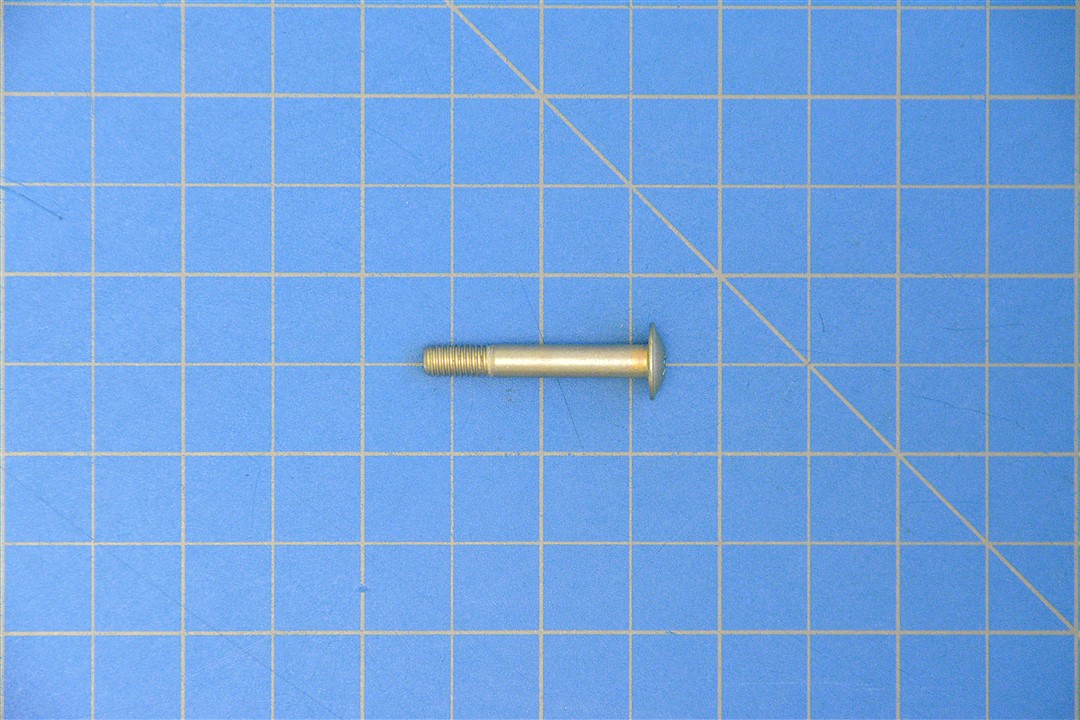

AN525-10R20 – SCREW, MACHINE

Description

AN525-10R20 – SCREW, MACHINE

Specifications

Head Style: Round Extended – Washer
Internal Drive Style: Cross Recess Type 1
Screw Surface Treatment: Cadmium Or Zinc
Screw Material: Steel
Fastener Length: 1.219″ Min – 1.281″ Max
Head Diameter: 0.365″ Min – 0.385″ Max
Head Height: 0.089″ Min – 0.099″ Max
Tensile Strength Min: 125000 Pounds Per Square Inch
Washer Diameter Extended: 0.427″ Min – 0.447″ Max
Washer Thickness Extended: 0.025″ Min – 0.030″ Max
Thread Class: 3A
Thread Diameter: 0.190″
Thread Direction: Right-Hand
Thread Length: 0.360″ Min – 0.453″ Max
Thread Quantity Per Inch: 32
Thread Series Designator: Unf

Part Number: AN525-10R20
Unpunctuated: AN52510R20
