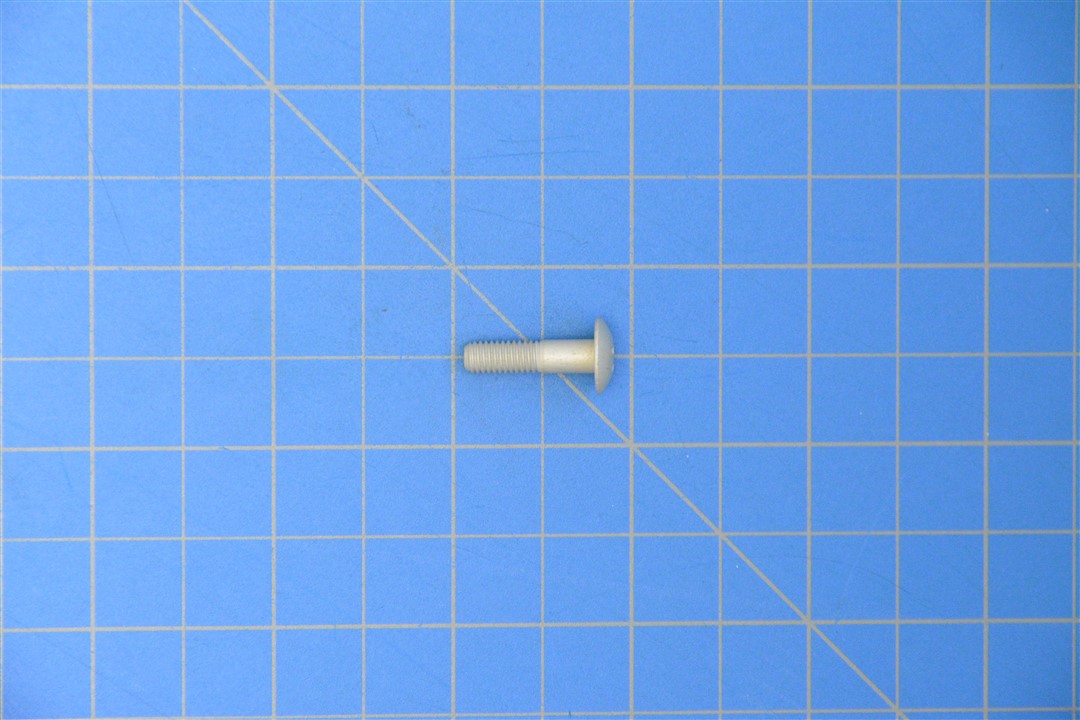

AN525D10R11 – SCREW, MACHINE

Description

AN525D10R11 – SCREW, MACHINE

Specifications

Head Style: Round Extended – Washer
Internal Drive Style: Cross Recess Type 1
Screw Surface Treatment: Anodize
Screw Material: Aluminum Alloy
Fastener Length: 0.656″ Min – 0.719″ Max
Head Diameter: 0.365″ Min – 0.385″ Max
Head Height: 0.089″ Min – 0.099″ Max
Tensile Strength Min: 62000 Pounds Per Square Inch
Washer Diameter Extended: 0.427″ Min – 0.447″ Max
Washer Thickness Extended: 0.025″ Min – 0.030″ Max
Thread Class: 3A
Thread Diameter: 0.190″
Thread Direction: Right-Hand
Thread Length: 0.297″ Min – 0.453″ Max
Thread Quantity Per Inch: 32
Thread Series Designator: Unf

Part Number: AN525D10R11
Unpunctuated: AN525D10R11

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
