AN503-8-12 – SCREW, MACHINE

Description

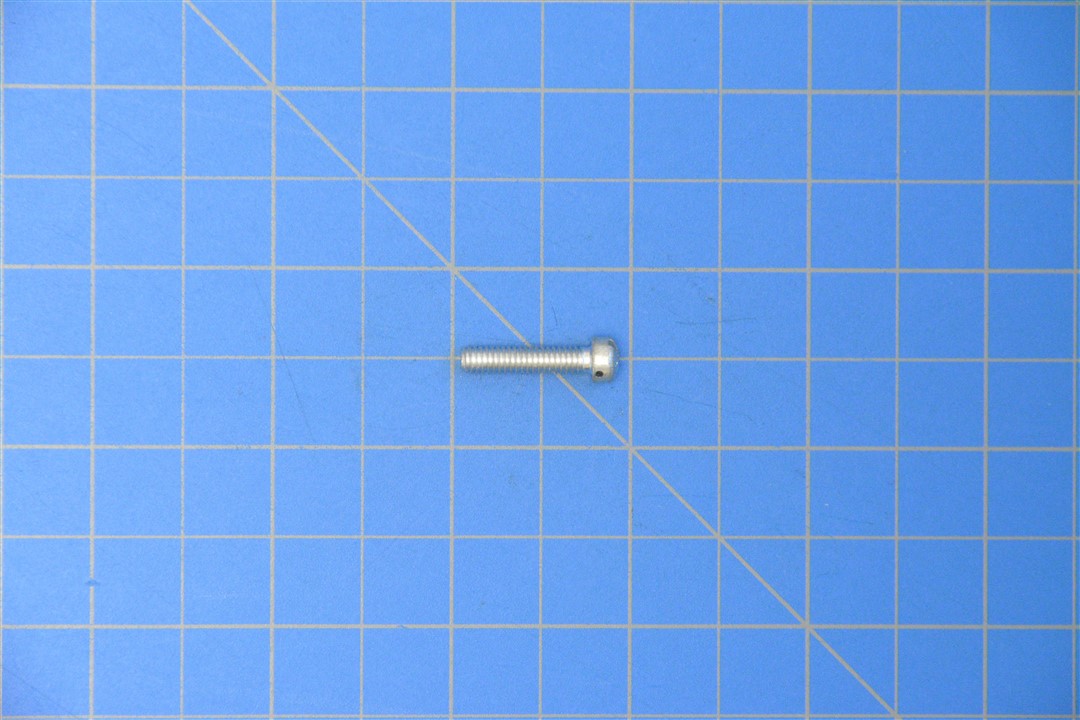

AN503-8-12 – SCREW, MACHINE

Specifications

Head Hole Configuration Style: Round
Head Style: Fillister
Internal Drive Style: Cross Recess Type 1
Screw Surface Treatment: Cadmium
Screw Material: Steel
Fastener Length: 0.750″ Nom
Head Diameter: 0.250″ Min – 0.270″ Max
Head Height: 0.106″ Min – 0.113″ Max
Hole Diameter: 0.050″ Nom
Tensile Strength Min: 125000 Pounds Per Square Inch
Thread Class: 3A
Thread Diameter: 0.164″
Thread Direction: Right-Hand
Thread Length: 0.594″ Min – 0.719″ Max
Thread Quantity Per Inch: 32
Thread Series Designator: Unc
Hole Quantity: 1

Part Number: AN503-8-12
Unpunctuated: AN503812
