AN174H-35 – BOLT, CLOSE TOLERANCE

Description

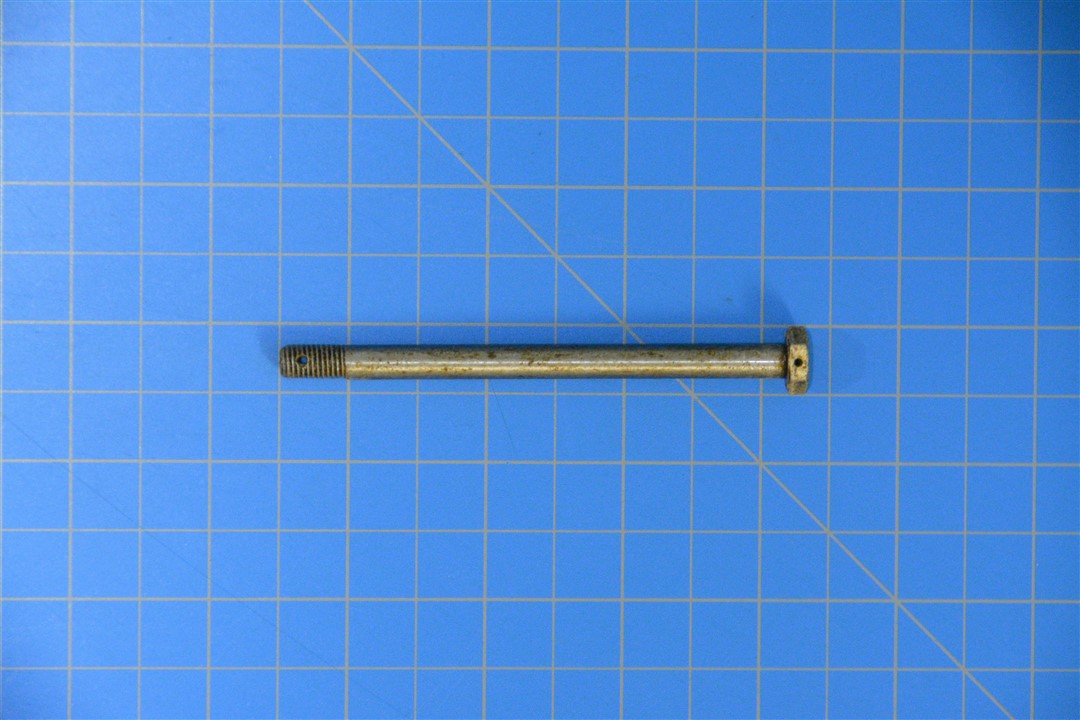

AN174H-35 – BOLT, CLOSE TOLERANCE

Specifications

Treatment (Surface): Cadmium And Chromate
Material: Steel
Thread Class: 3A
Thread Direction: Right-Hand
Thread Series: Unf
Threads Per inch: 28
Fastener Length: 3.640″ – 3.687″
Flat Width (Between): 0.428″ – 0.440″
Grip Diameter: 0.2487″ – 0.2492″
Grip Length: 3.172″ – 3.204″
Head Bearing To Shank Hole Center Distance: 3.484″ Minimum First Hole And 3.516″ First Hole
Head Height: 0.140″ – 0.172″
Hole Diameter (Unthreaded Shank): 0.076″ Nominal First Hole
Hole Diameter: 0.046″ Nominal
Nominal Thread Diameter: 0.250″
Holes (Qty): 1
Style (Head): Hexagon
Style (Hole Configuration): Hexagon Flats
Type: Drilled

Part Number: AN174H-35
Unpunctuated: AN174H35

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
