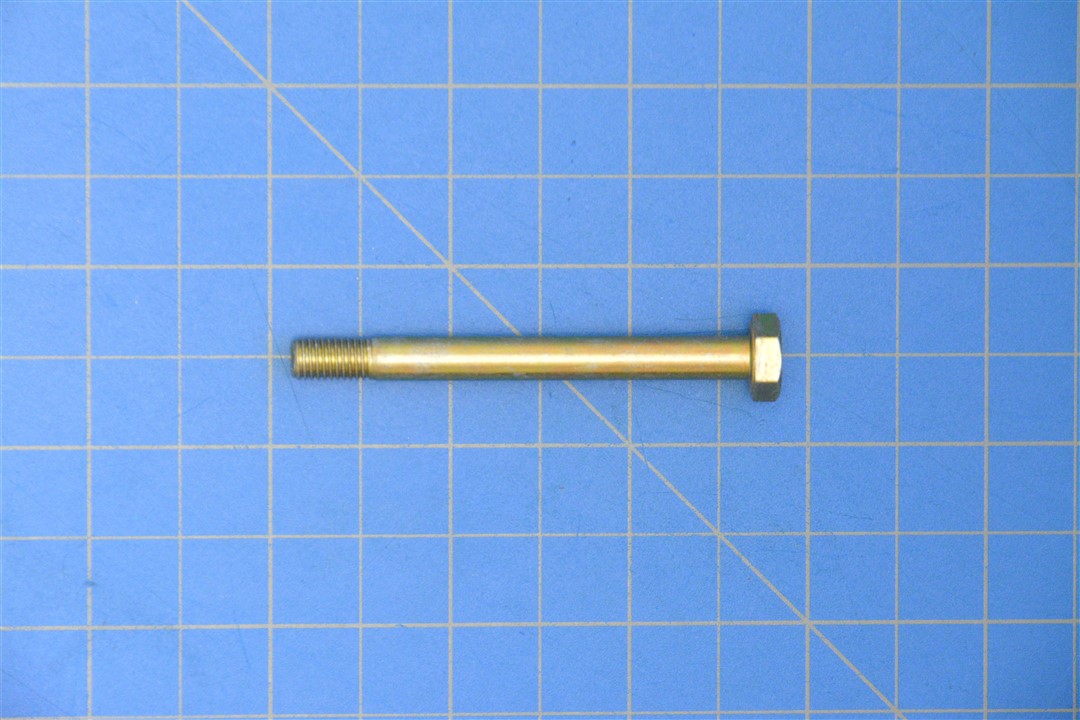

AN174-24A – BOLT, CLOSE TOLERANCE

Description

AN174-24A – BOLT, CLOSE TOLERANCE

Specifications

Surface Finish: 32.0 Microinches – Grip
Surface Finish: 63.0 Microinches – Bearing Surface Of Head
Material: Steel
Fastener Length: 2.531″ Nom
Head Height: 0.140″ Min – 0.172″ Max
Tensile Strength Min: 125000 Pounds Per Square Inch
Thread Class: 3A
Thread Length: 0.469″ Min

Part Number: AN174-24A
Unpunctuated: AN17424A

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
