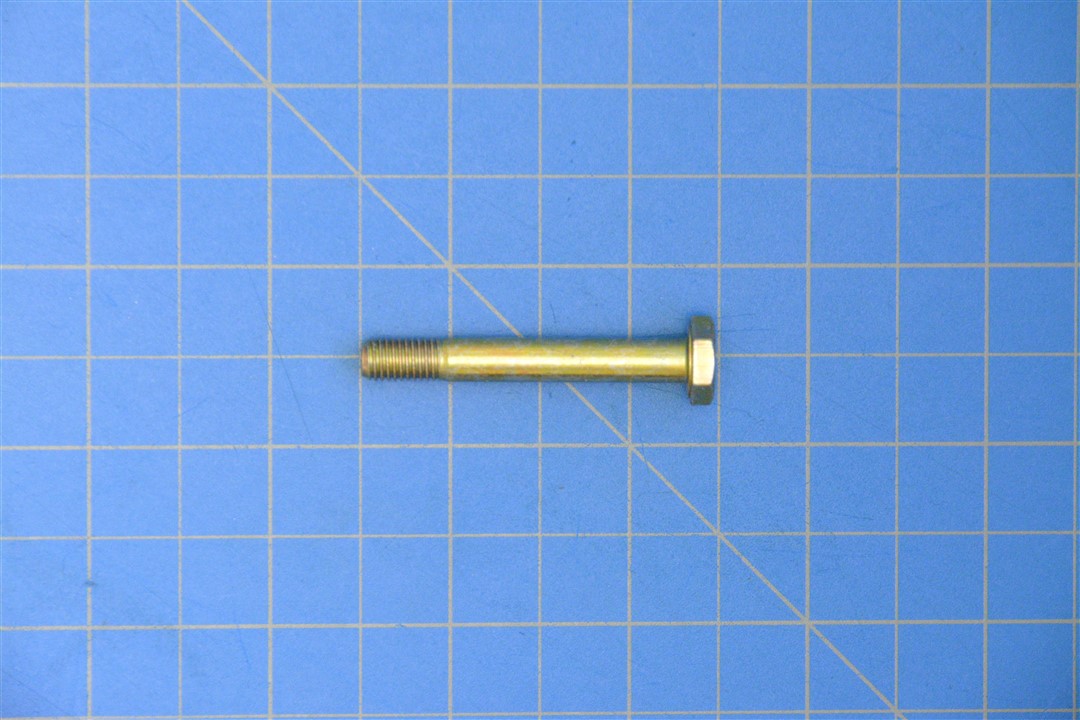

AN174-16A – BOLT, MACHINE

Name: AN174-16A - BOLT, MACHINE - AVBOX US
SKU: AN174-16A_NS_EA
Price: 2.16 USD
Availability: InStock

$2.16

NEW SURPLUS, SOLD PER EACH

171 in stock

GUARANTEED SAFE CHECKOUT

Description

AN174-16A – BOLT, MACHINE

NEW SURPLUS, SOLD PER EACH

Specifications

Head Style: Hexagon
Surface Treatment: Cadmium
Material: Steel
Fastener Length: 1.765″ Min – 1.812″ Max
Grip Length: 1.296″ Min – 1.328″ Max
Head Height: 0.140″ Min – 0.172″ Max
Width Between Flats: 0.428″ Min – 0.440″ Max
Thread Class: 3A
Thread Diameter: 0.250″
Thread Direction: Right-Hand
Thread Length: 0.469″ Nom
Thread Quantity Per Inch: 28
Thread Series Designator: Unf

Part Number: AN174-16A
Unpunctuated: AN17416A

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.

AVBOX US Certificate of Conformance: This product comes with an AVBOX US Certificate of Conformance (CoC), assuring that the part(s) meet specified design, quality, and regulatory standards at the time of manufacture, providing confirmation of compliance and adherence to applicable aviation requirements.

Part Numbers, Alternates & Reference Info: We ship the exact part number shown in the product title/description when in stock. Any NSNs or alternate part numbers listed are for traceability/reference only. If a compatible alternate is the only option available, we will contact you before shipping to confirm acceptance. Specifications are compiled from multiple sources and provided for convenience; always verify fit, tolerances, and requirements in the official spec sheets and applicable repair manuals/IPCs before purchase. If specific documentation (e.g., 8130 or company CoC/trace) is required, please contact us before ordering. We do not provide usage/support guidance, please refer to the manuals. Ordering the wrong part can extend lead times and result in aircraft downtime.

Specifications

No specifications have been added for this product yet.

Please review the product title, part number, condition, photos, and description before ordering.

Alternate Parts

No alternate parts have been added for this product yet.

Verification Required: Alternate, equivalent, superseded, and manufacturer-reference parts must be verified for part number accuracy, aircraft configuration, documentation requirements, and suitability before purchase or use.

Additional Information

Before ordering, please review the product title, part number, condition, quantity, unit of measure, photos, documentation notes, and any listed alternate part numbers.

Condition & Documentation

Only the condition and documentation shown or stated on this product listing should be expected with the order. Company CoC, Manufacturer CoC, trace, FAA Form 8130-3, tags, or other paperwork should only be expected when clearly listed.

Part Number Verification

Aircraft parts and hardware can look similar while differing by dash number, suffix, material, finish, dimensions, certification, or application. Customers are responsible for confirming the correct part number and suitability before purchase or use.

Shipping & Ordering

Orders are generally processed within 24 business hours when possible. Orders with customer-provided shipping accounts, tax-exempt requests, missing information, special handling, or documentation questions may require review before shipment.
