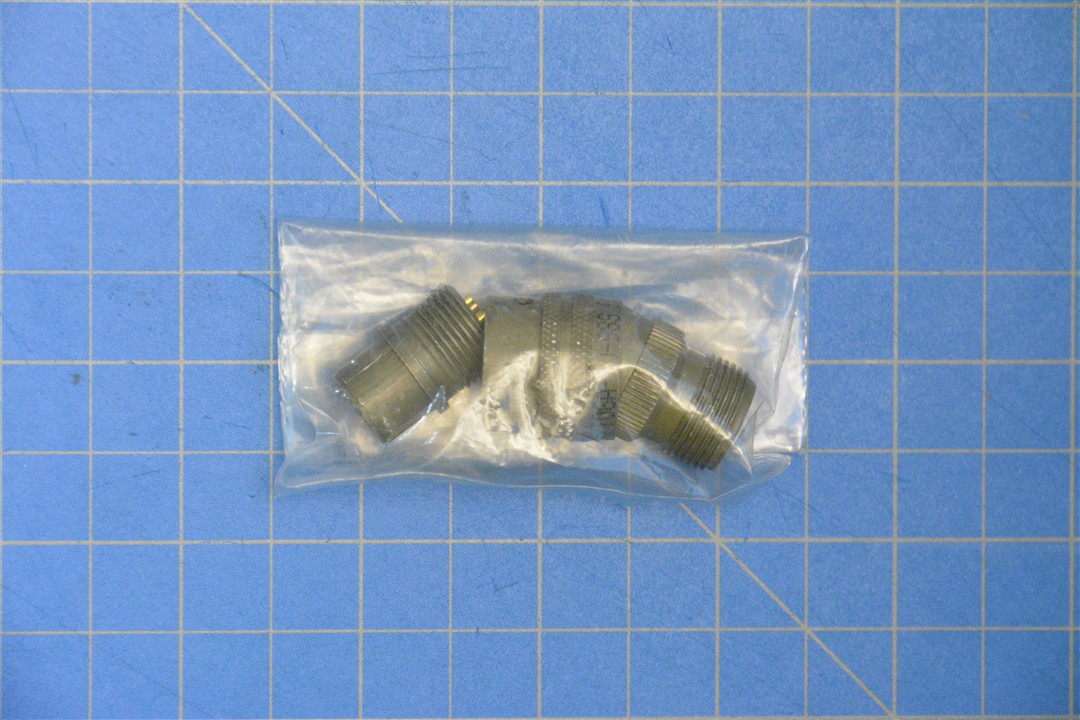

PT06A10-98S – CONNECTOR, PLUG, ELECTRICAL

Description

PT06A10-98S – CONNECTOR, PLUG, ELECTRICAL

NEW SURPLUS, SOLD PER EACH

Specifications

Thread Class: 2A
Thread Direction: Right-hand
Body Style: Straight shape, internal coupling
Overall Length: 1.609 in. max
Overall Diameter: 0.859 in. max
Threaded Device Type: Back shell
Mating End Quantity: 1
Contact Position Arrangement Style: 10-98 single mating end
Contact Removability: Nonremovable single mating end single contact grouping
Contact Maximum Current Rating in Amps: 7.5 single mating end single contact grouping
Contact Maximum AC Voltage Rating in Volts: 500.0 single mating end single contact grouping
Contact Maximum DC Voltage Rating in Volts: 700.0 single mating end single contact grouping
Polarization Method: Keyway or multiple keyway
Insert Position in DEG: 0.0
Shell Type: Solid
Connector Locking Method: Bayonet latch
Nominal Thread Size: 0.625 in.
Terminal Location: Back single mating end single contact grouping
Contact Material: Copper alloy single mating end single contact grouping
Contact Surface Treatment: Gold single mating end single contact grouping and silver single mating end single contact grouping
Insert Material: Rubber single mating end
Terminal Type: Solder well single mating end single contact grouping
Shell Material: Aluminum alloy
Shell Surface Treatment: Cadmium and chromate
Included Contact Quantity: 6 single mating end single contact grouping
Included Contact Type: Round socket single mating end single contact grouping
Precious Material and Location: Contact surfaces gold and contact surfaces silver
Precious Material and Weight: 0.006 gold grains, troy and 0.006 silver grains, troy
Precious Material: Gold and silver
Thread Series Designator: UNEF

Alternate Part Numbers: PT06A10-98S, 851-06A10-98S50, BT06A10-98S

NSN Numbers associated with PN: 5935-00-992-0300

Part Number: PT06A10-98S
Unpunctuated: PT06A1098S

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
