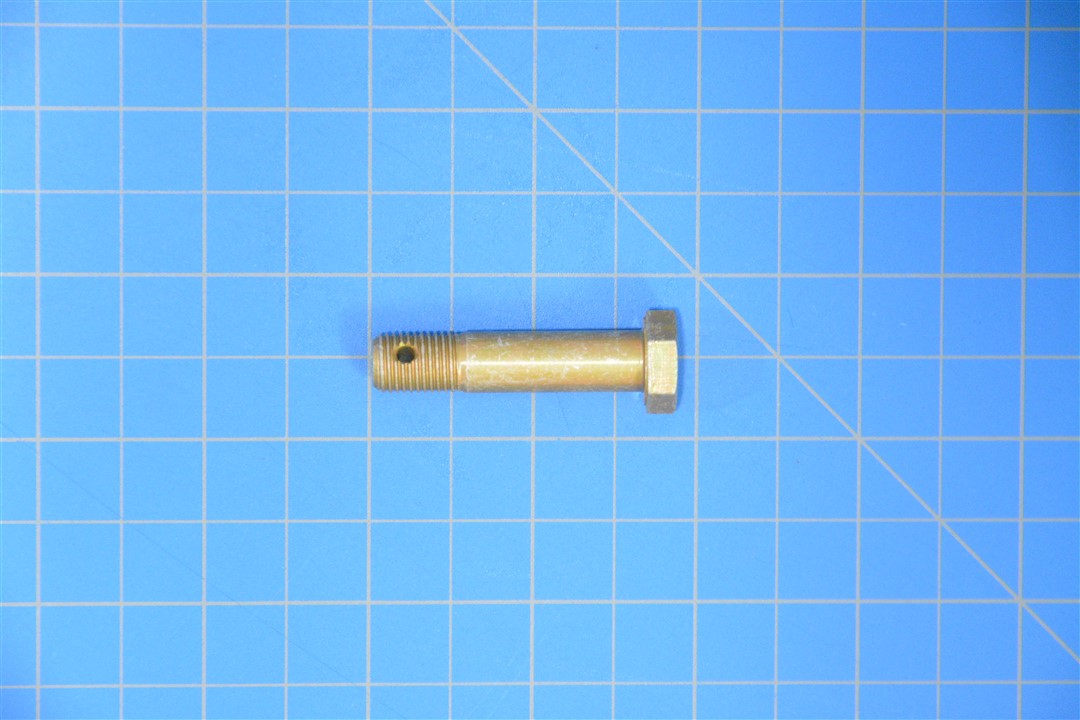

NAS6606D17 – BOLT, SHEAR

Description

NAS6606D17 – BOLT, SHEAR

Specifications

Head Style: Dished Hexagon
Surface Finish: 32.0 Microinches
Surface Finish: 32.0 Microinches – Bearing Surface Of Head
Surface Finish: 32.0 Microinches – Grip
Surface Treatment: Cadmium And Chromate
Material: Steel
Fastener Length: 1.625″ Min – 1.655″ Max
Grip Diameter: 0.3735″ Min – 0.3745″ Max
Grip Length: 1.052″ Min – 1.072″ Max
Head Height: 0.188″ Min – 0.203″ Max
Head Surface To Shank Hole Center: 1.418″ Min And 1.468″ Max – First Hole
Shank Unthreaded Hole Diameter: 0.096″ Min And 0.116″ Max – First Hole
Tensile Strength Min: 160000 Pounds Per Square Inch
Width Between Flats: 0.554″ Min – 0.564″ Max
Thread Class: 3A
Thread Diameter: 0.375″
Thread Direction: Right-Hand
Thread Length: 0.553″ Min – 0.603″ Max
Thread Quantity Per Inch: 24
Thread Series Designator: Unjf
Standard: National Aerospace Standards

Part Number: NAS6606D17
Unpunctuated: NAS6606D17

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
