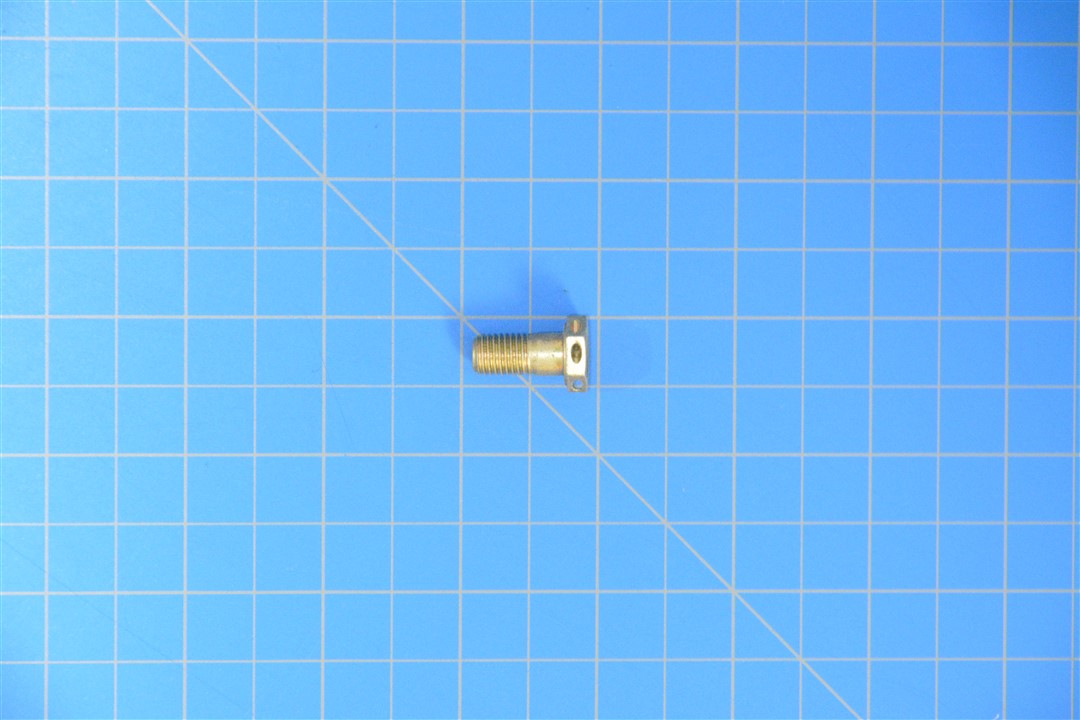

NAS6605H3 – BOLT, SHEAR

Description

NAS6605H3 – BOLT, SHEAR

Specifications

Head Style: Dished Hexagon
Hole Configuration Style: Hexagon Corners
Hole Type: Drilled
Surface Finish: 32.0 Microinches
Surface Finish: 32.0 Microinches – Bearing Surface Of Head
Surface Finish: 32.0 Microinches – Grip
Surface Treatment: Cadmium And Chromate
Material: Steel
Fastener Length: 0.642″ Min – 0.672″ Max
Grip Diameter: 0.3110″ Min – 0.3120″ Max
Grip Length: 0.178″ Min – 0.198″ Max
Head Height: 0.156″ Min – 0.171″ Max
Hole Diameter: 0.070″ Min – 0.080″ Max
Tensile Strength Min: 160000 Pounds Per Square Inch
Width Between Flats: 0.492″ Min – 0.502″ Max
Thread Class: 3A
Thread Diameter: 0.312″
Thread Direction: Right-Hand
Thread Length: 0.444″ Min – 0.494″ Max
Thread Quantity Per Inch: 24
Thread Series Designator: Unjf
Hole Quantity: 3
Standard: National Aerospace Standards

Part Number: NAS6605H3
Unpunctuated: NAS6605H3

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
