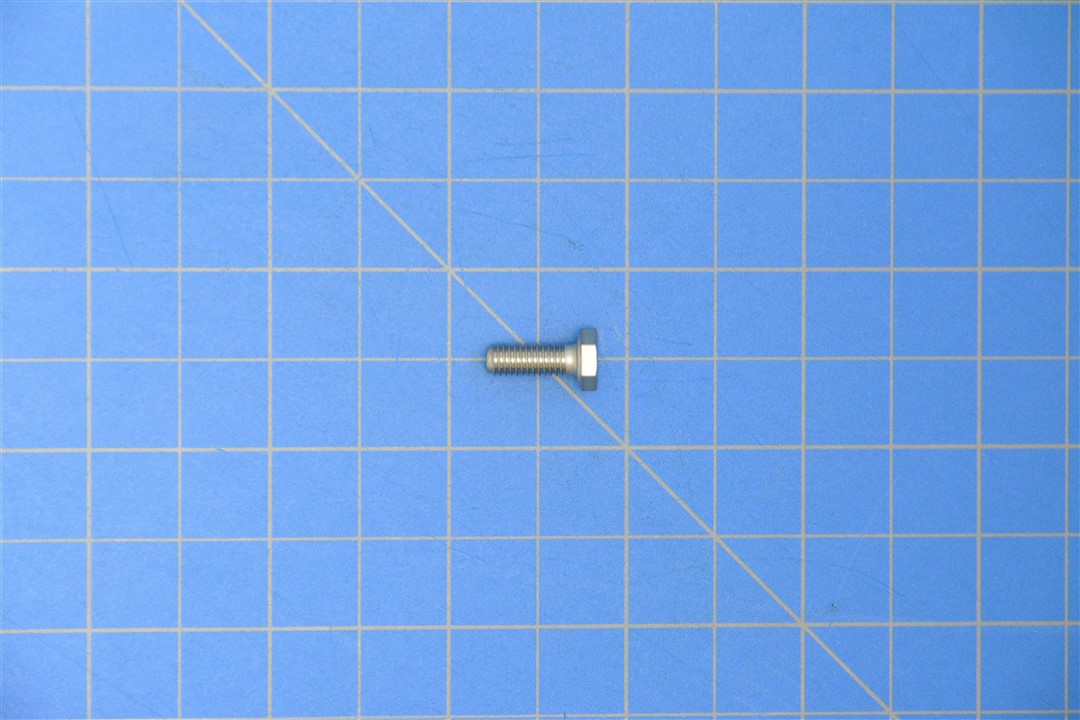

NAS1802-3-8 – SCREW, MACHINE

Description

NAS1802-3-8 – SCREW, MACHINE

Specifications

Head Style: Hexagon
Internal Drive Style: Cross Recess Type 1
Screw Surface Treatment: Passivate
Screw Material: Iron Alloy
Fastener Length: 0.484″ Min – 0.531″ Max
Head Height: 0.105″ Min – 0.120″ Max
Tensile Strength Min: 160000 Pounds Per Square Inch
Width Between Flats: 0.305″ Min – 0.314″ Max
Thread Class: 3A
Thread Diameter: 0.190″
Thread Direction: Right-Hand
Thread Length: 0.450″ Min – 0.499″ Max
Thread Quantity Per Inch: 32
Thread Series Designator: Unjf

Part Number: NAS1802-3-8
Unpunctuated: NAS180238

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
