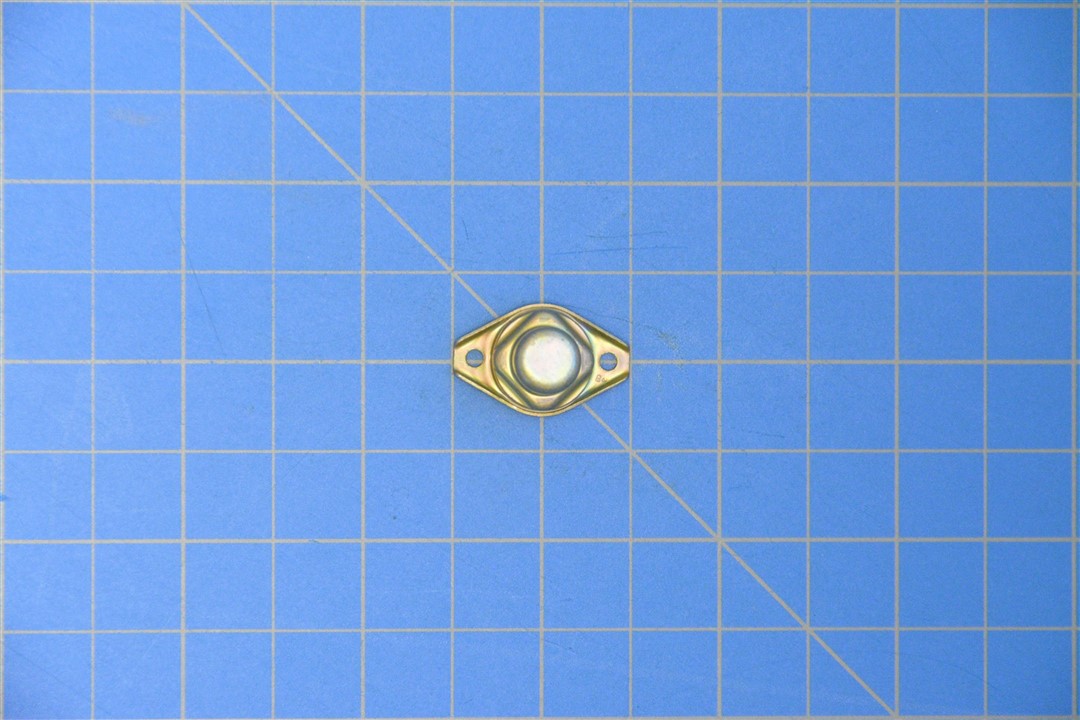

NAS1474A4 – NUT PLATE, SELF-LOCKING

Description

NAS1474A4 – NUT PLATE, SELF-LOCKING

Specifications

Mount Arrangement: 2 Holes
Nut Mounting: Straight Holes
Nut Style: Plate
Lubrication: Dry Film Lubricant
Surface Treatment: Anodize Or Cadmium – Washer
Surface Treatment: Cadmium – Nut
Surface Treatment: Cadmium Shell
Material: Rubber Synthetic Seal
Material: Steel
Material: Steel
Material: Steel
Center To Center Distance Between Mounting Holes Along Length: 0.750″ Min – 0.754″ Max
Center To Mounting Distance: 0.371″ Min – 0.381″ Max
Counterbore Diameter: 0.280″ Min – Nut
Mounting Hole Diameter: 0.098″ Nom
Nut Counterbore Depth: 0.105″ Min – Nut
Nut Height: 0.350″ Max
Nut Length: 1.000″ Max
Overall Height: 0.560″ Max
Thickness: 0.030″ Max
Width: 0.635″ Max
Features Provided: Floating – Nut
Locking Feature: Prevailing Torque All Metal Design
Temperature Rating: -65.0° F Min – 225.0° F Max

Part Number: NAS1474A4
Unpunctuated: NAS1474A4

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
