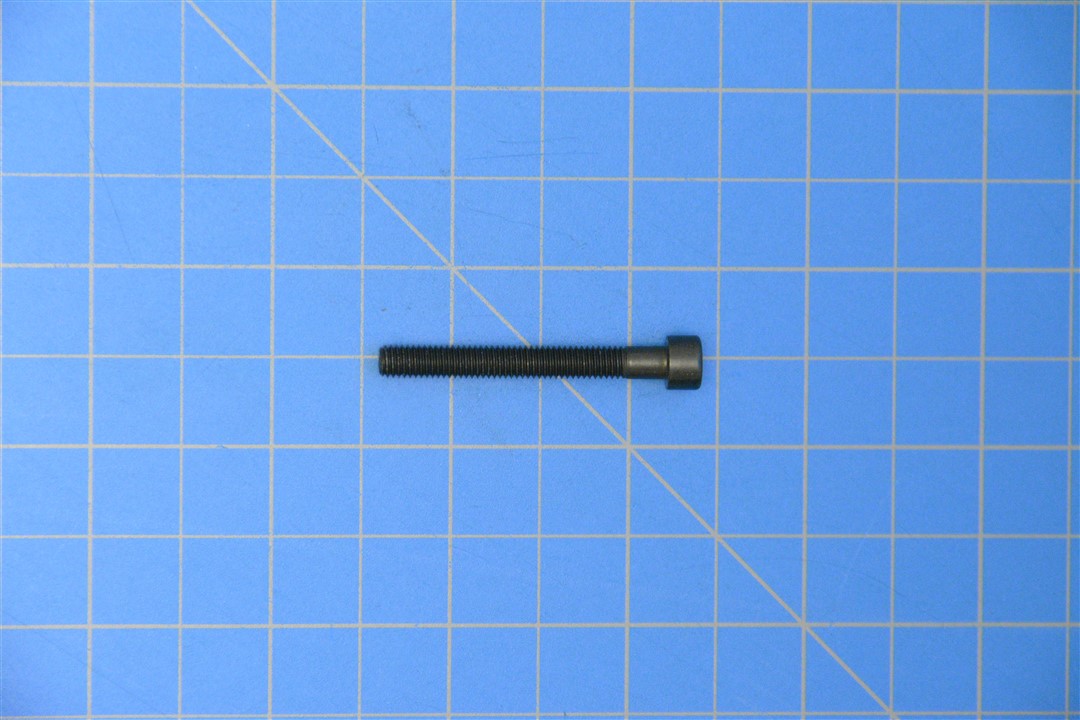

NAS1351-3-26 – SCREW, CAP, SOCKET HEAD

Description

NAS1351-3-26 – SCREW, CAP, SOCKET HEAD

Specifications

Head Style: Flat Chamfer
Internal Drive Style: Hexagon
Surface Treatment: Oxide
Material: Steel
Fastener Length: 1.585″ Min – 1.625″ Max
Head Diameter: 0.303″ Min – 0.312″ Max
Head Height: 0.185″ Min – 0.190″ Max
Width Across Flats: 0.156″ Nom
Thread Class: 3A
Thread Diameter: 0.190″
Thread Direction: Right-Hand
Thread Length: 0.875″ Min
Thread Quantity Per Inch: 32
Thread Series Designator: Unrf

Part Number: NAS1351-3-26
Unpunctuated: NAS1351326

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
