NAS1203-14D – SCREW, CLOSE TOLERANCE

Description

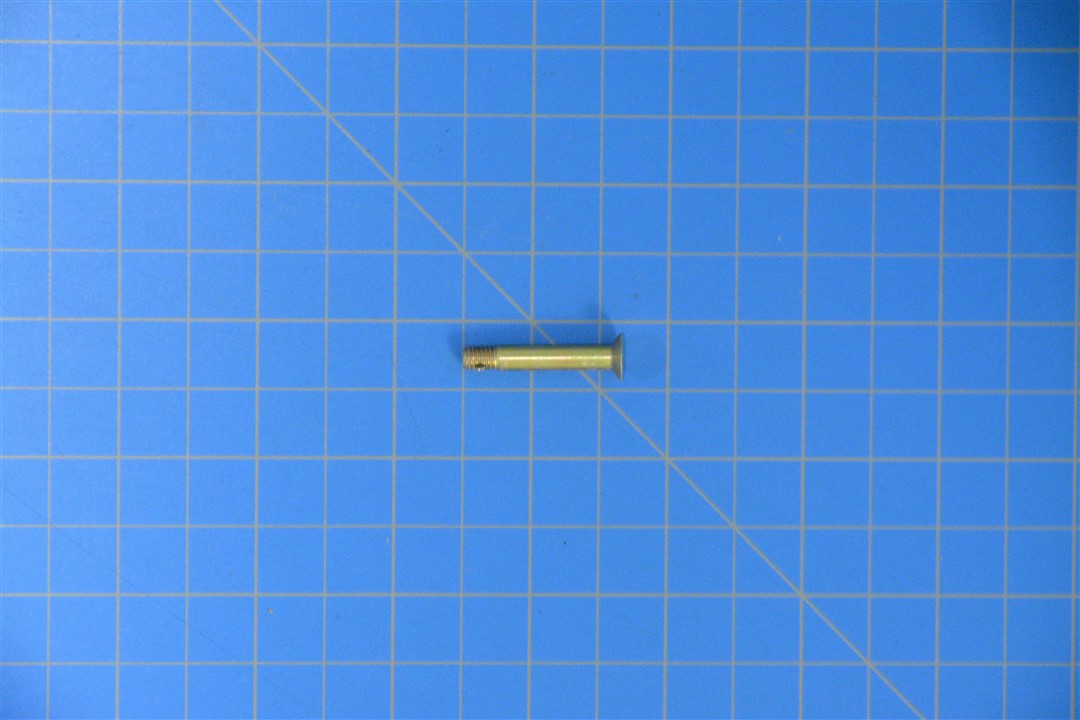

NAS1203-14D – SCREW, CLOSE TOLERANCE

Specifications

Head Style: Flat Countersunk
Internal Drive Style: Cross Recess Type 1
Surface Treatment: Cadmium And Chromate
Material: Steel
Countersink Angle: 99.0° Min – 101.0° Min
Fastener Length: 1.136″ Min – 1.166″ Max
Grip Diameter: 0.1885″ Min – 0.1895″ Max
Grip Length: 0.875″ Nom
Head Diameter: 0.328″ Min – 0.385″ Max
Head Surface To Shank Hole Center: 1.034″ Nom – First Hole
Shank Unthreaded Hole Diameter: 0.070″ Nom – First Hole
Tensile Strength Min: 160000 Pounds Per Square Inch
Thread Class: 3A
Thread Diameter: 0.190″
Thread Direction: Right-Hand
Thread Length: 0.276″ Min
Thread Quantity Per Inch: 32
Thread Series Designator: Unf

Part Number: NAS1203-14D
Unpunctuated: NAS120314D
