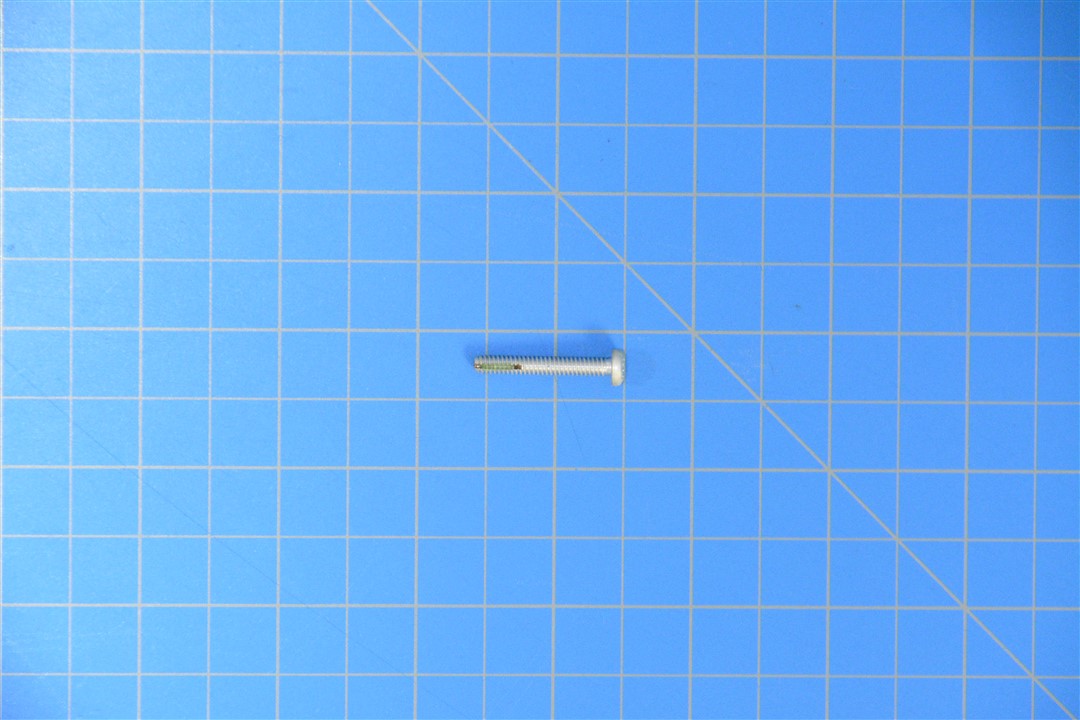

NAS1190-06P16L – SCREW, CAP, SOCKET HEAD

Description

NAS1190-06P16L – SCREW, CAP, SOCKET HEAD

Specifications

Head Style: Pan
Internal Drive Style: Cross Recess Type 1
Surface Treatment: Cadmium And Chromate
Material: Steel
Fastener Length: 0.969″ Min – 1.000″ Max
Head Diameter: 0.256″ Min – 0.270″ Max
Head Height: 0.087″ Min – 0.097″ Max
Tensile Strength Min: 160000 Pounds Per Square Inch
Thread Class: 3A
Thread Diameter: 0.138″
Thread Direction: Right-Hand
Thread Length: 0.907″ Min – 1.000″ Max
Thread Quantity Per Inch: 32
Thread Series Designator: Unjc
Standard: National Aerospace Standards

Locking Method: Strips

Part Number: NAS1190-06P16L
Unpunctuated: NAS119006P16L

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
