Description

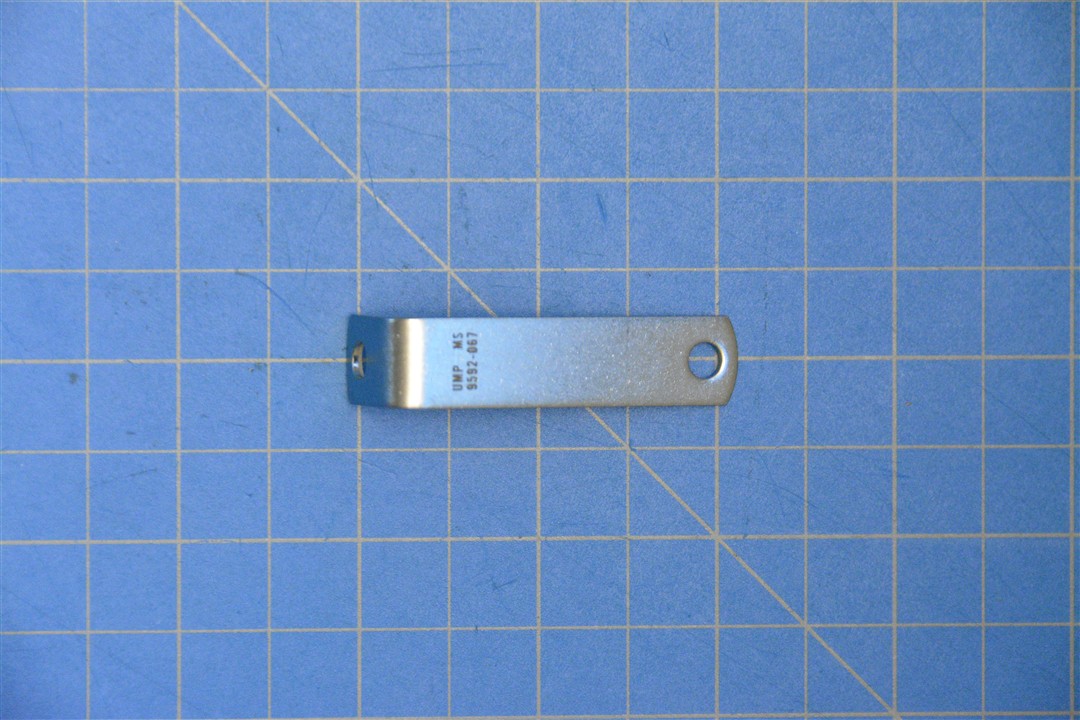

MS9592-067 – BRACKET, ANGLE
NEW SURPLUS, SOLD PER EACH
Specifications
First Leg Length: 0.695 in. min – 0.705 in. max
Second Leg Length: 1.070 in. min – 1.080 in. max
Second Leg Width: 0.500 in. nom
First Leg Hole Diameter: 0.200 in. min – 0.210 in. max
Second Leg Hole Diameter: 0.200 in. min – 0.210 in. max
Second Leg Distance from Edge to Hole Center along Width: 0.245 in. min – 0.255 in. max
Second Leg Distance from Edge to Hole Center along Length: 0.195 in. min – 0.205 in. max
First Leg Thickness: 0.056 in. min – 0.068 in. max
Second Leg Thickness: 0.056 in. min – 0.068 in. max
First Leg Width: 0.500 in. nom
First Leg Distance from Edge to Hole Center along Width: 0.245 in. min – 0.255 in. max
First Leg Distance from Edge to Hole Center along Length: 0.195 in. min – 0.205 in. max
First Leg End Radius: 0.500 in. nom
Second Leg End Radius: 0.500 in. nom
First Leg Style: End radius
First Leg Hole Arrangement Style: One hole
Second Leg Style: End radius
Second Leg Hole Arrangement Style: One hole
Second Leg Relationship to First Leg: Not identical
First Leg Angle: 90.0 degrees nom
Material: Steel comp 321
Alternate Part Numbers: MS9592-067, SAE-AS9592
NSN Numbers associated with PN: 5340-00-111-1190
Part Number: MS9592-067
Unpunctuated: MS9592067
The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
AVBOX US Certificate of Conformance: This product comes with an AVBOX US Certificate of Conformance (CoC), assuring that the part(s) meet specified design, quality, and regulatory standards at the time of manufacture, providing confirmation of compliance and adherence to applicable aviation requirements.
Part Numbers, Alternates & Reference Info: We ship the exact part number shown in the product title/description when in stock. Any NSNs or alternate part numbers listed are for traceability/reference only. If a compatible alternate is the only option available, we will contact you before shipping to confirm acceptance. Specifications are compiled from multiple sources and provided for convenience; always verify fit, tolerances, and requirements in the official spec sheets and applicable repair manuals/IPCs before purchase. If specific documentation (e.g., 8130 or company CoC/trace) is required, please contact us before ordering. We do not provide usage/support guidance, please refer to the manuals. Ordering the wrong part can extend lead times and result in aircraft downtime.
Specifications
No specifications have been added for this product yet.
Please review the product title, part number, condition, photos, and description before ordering.
Alternate Parts
No alternate parts have been added for this product yet.
Verification Required: Alternate, equivalent, superseded, and manufacturer-reference parts must be verified for part number accuracy, aircraft configuration, documentation requirements, and suitability before purchase or use.
Additional Information
Before ordering, please review the product title, part number, condition, quantity, unit of measure, photos, documentation notes, and any listed alternate part numbers.
Condition & Documentation
Only the condition and documentation shown or stated on this product listing should be expected with the order. Company CoC, Manufacturer CoC, trace, FAA Form 8130-3, tags, or other paperwork should only be expected when clearly listed.
Part Number Verification
Aircraft parts and hardware can look similar while differing by dash number, suffix, material, finish, dimensions, certification, or application. Customers are responsible for confirming the correct part number and suitability before purchase or use.
Shipping & Ordering
Orders are generally processed within 24 business hours when possible. Orders with customer-provided shipping accounts, tax-exempt requests, missing information, special handling, or documentation questions may require review before shipment.
