MS3474L16-26SW – CONNECTOR, RECEPTACLE, ELECTRICAL

Description

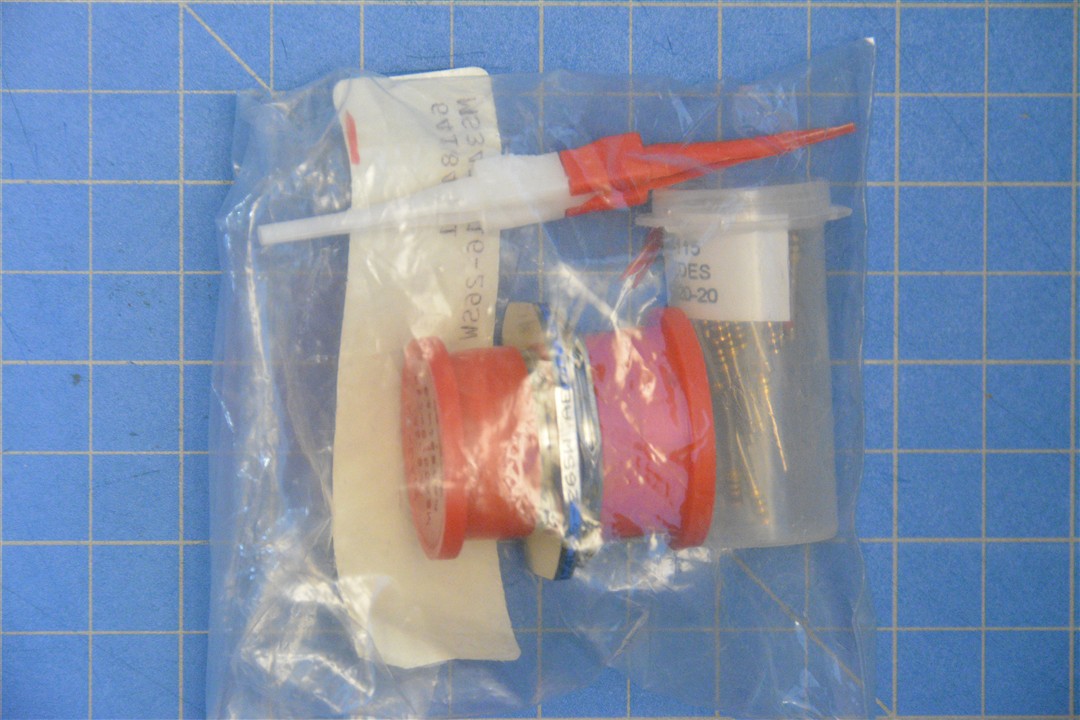

MS3474L16-26SW – CONNECTOR, RECEPTACLE, ELECTRICAL

NEW SURPLUS, SOLD PER EACH

Specifications

Thread Class: 2A
Thread Direction: Right-hand
Body Style: Straight shape, external coupling
Overall Length: 1.405 in. max
Overall Diameter: 1.610 in. min – 1.641 in. max
Environmental Protection: Moisture proof and salt water resistant and vibration proof
Distance from Mounting Shoulder to Front Face: 0.658 in. min – 0.707 in. max
Mounting Facility Thickness: 0.062 in. min – 0.187 in. max
Threaded Device Type: Back shell and mounting bushing
Mating End Quantity: 1
Contact Position Arrangement Style: 16-26 single mating end
Contact Removability: Removable single mating end single contact grouping
Contact Maximum AC Voltage Rating in Volts: 1000.0 single mating end single contact grouping
Polarization Method: Keyway or multiple keyway
Insert Position in DEG: 60.0
Terminal Type: Crimp single mating end single contact grouping
Shell Material: Aluminum alloy 6061
Shell Surface Treatment: Nickel
Shell Surface Treatment Document and Classification: MIL-C-26074 class 3, grade B mil spec single treatment response
Shell Material Document and Classification: QQ-A-367, T6 fed spec single material response
Included Contact Quantity: 26 single mating end single contact grouping
Bushing Accommodation Hole Shape: Round W/flat
Included Contact Type: Round socket single mating end single contact grouping
Precious Material and Location: Contact surfaces gold
Precious Material and Weight: 0.026 gold grains, troy
Precious Material: GOLD
Connector Locking Method: Bayonet pin
Thread Quantity per Inch: 20 and 18
Nominal Thread Size: 1.000 in. and 1.125 in.
Terminal Location: Back single mating end single contact grouping
Contact Surface Treatment: Gold single mating end single contact grouping and nickel single mating end single contact grouping

Alternate Part Numbers: MIL-C-26482, MIL-DTL-26482, MS3474L16-26SW

NSN Numbers associated with PN: 5935-01-112-5439

Part Number: MS3474L16-26SW
Unpunctuated: MS3474L1626SW
