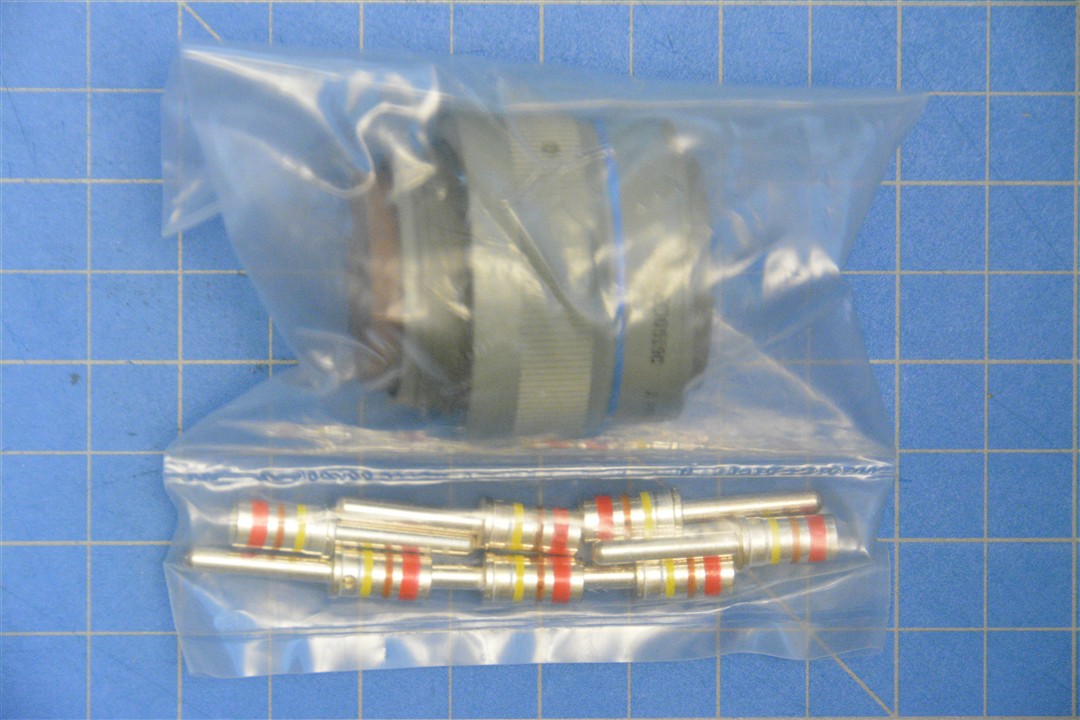

MS3459W24-10P – CONNECTOR, PLUG, ELECTRICAL

Description

MS3459W24-10P – CONNECTOR, PLUG, ELECTRICAL

NEW SURPLUS, SOLD PER EACH

Specifications

Thread Class: 2A and 2B
Thread Direction: Right-hand
Body Style: Straight shape, internal coupling
Overall Length: 2.500 in. max
Overall Diameter: 1.963 in. max
Environmental Protection: Moisture proof and salt water resistant and vibration proof
Threaded Device Type: Back shell and coupling facility
Mating End Quantity: 1
Contact Position Arrangement Style: 24-10 single mating end
Contact Removability: Removable single mating end single contact grouping
Contact Maximum Current Rating in Amps: 73.0 single mating end single contact grouping
Contact Maximum AC Voltage Rating in Volts: 500.0 single mating end single contact grouping
Contact Maximum DC Voltage Rating in Volts: 700.0 single mating end single contact grouping
Polarization Method: Keyway or multiple keyway
Insert Position in DEG: 0.0
Shell Type: Solid
Connector Locking Method: Internally threaded coupling ring
Nominal Thread Length: 0.290 in. and 0.664 in.
Thread Quantity per Inch: 1818
Nominal Thread Size: 1.437 in. and 1.500 in.
Terminal Location: Back single mating end single contact grouping
Contact Material: Copper alloy single mating end single contact grouping
Contact Surface Treatment: Gold single mating end single contact grouping
Insert Material: Rubber silicone class Q single mating end
Contact Surface Treatment Document and Classification: MIL-G-45204 mil spec single treatment response single mating end single contact grouping
Terminal Type: Crimp single mating end single contact grouping
Shell Material: Aluminum alloy
Shell Surface Treatment: Cadmium and chromate
Shell Surface Treatment Document and Classification: QQ-P-416, type 2, class 3 fed spec all treatment responses
Included Contact Quantity: 7 single mating end single contact grouping
Included Contact Type: Round pin single mating end single contact grouping
Precious Material and Location: Contact surfaces gold
Precious Material and Weight: 0.035 gold grains, troy
Precious Material: GOLD

Alternate Part Numbers: MS3459W24-10P, MIL-C-5015, AS50151, SAE-AS50151

NSN Numbers associated with PN: 5935-01-285-3429

Part Number: MS3459W24-10P
Unpunctuated: MS3459W2410P

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
