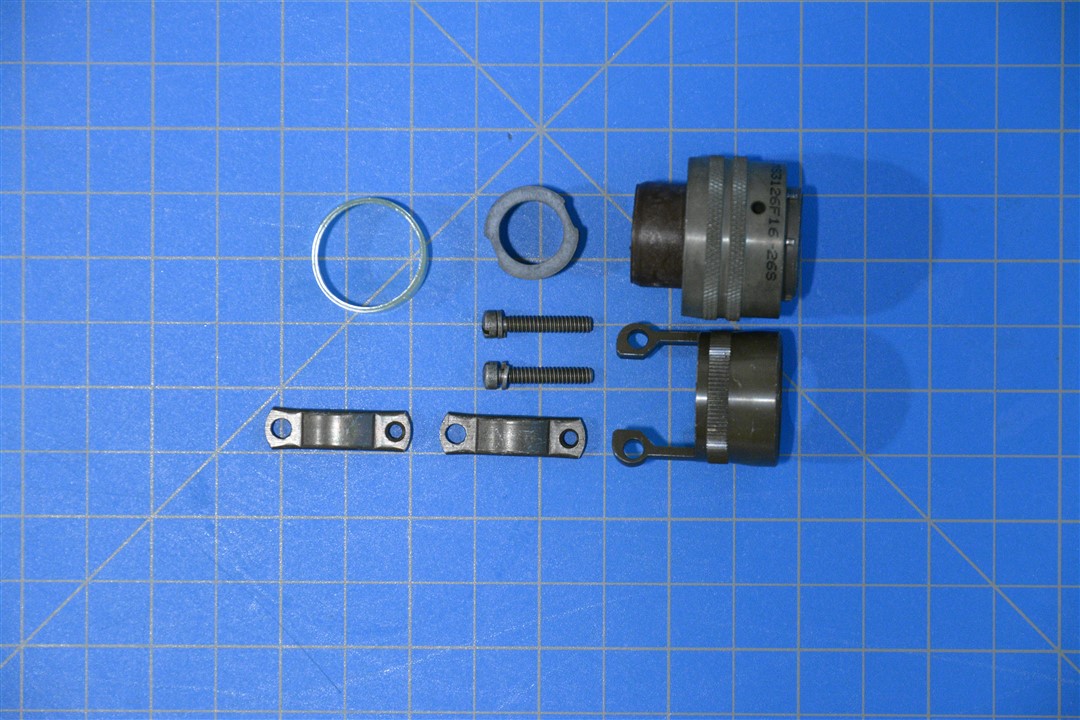

MS3126F16-26S – CONNECTOR

Description

MS3126F16-26S – CONNECTOR

Specifications

Body Style: Straight Shape, Internal Coupling W/Strain Relief
Protection: Moisture Resistant And Salt Water Resistant And Vibration Resistant
Terminal Type: Crimp Single Mating End Single Contact Grouping
Contact Surface: Gold Single Mating End Single Contact Grouping And Copper Single Mating End Single Contact Grouping
Precious Material: Gold
Shell Material: Aluminum Alloy
Shell Surface Treatment: Cadmium
Body Length: 2.528″ Max
Cable Entrance Diameter: 0.356″ Max
Overall Diameter: 1.281″ Max
Contact Arrangement Style: 16-26 Single Mating End
Contact Quantity: 26 Single Mating End Single Contact Grouping
Contact Type: Round Socket Single Mating End Single Contact Grouping
Locking Method: Bayonet Latch
Mating End Quantity: 1
Max Ac Voltage: 600.0 Single Mating End Single Contact Grouping
Polarization Method: Key, Multiple Key Groove
Shell Type: Solid
Strain Relief Type: Cable Clamp
Contact Removal: Removable Single Mating End Single Contact Grouping
Precious Material Location: Contact Surfaces Gold
Precious Material Weight: 0.026 Gold Grains, Troy
Terminal Location: Back Single Mating End Single Contact Grouping

Part Number: MS3126F16-26S
Unpunctuated: MS3126F1626S

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
