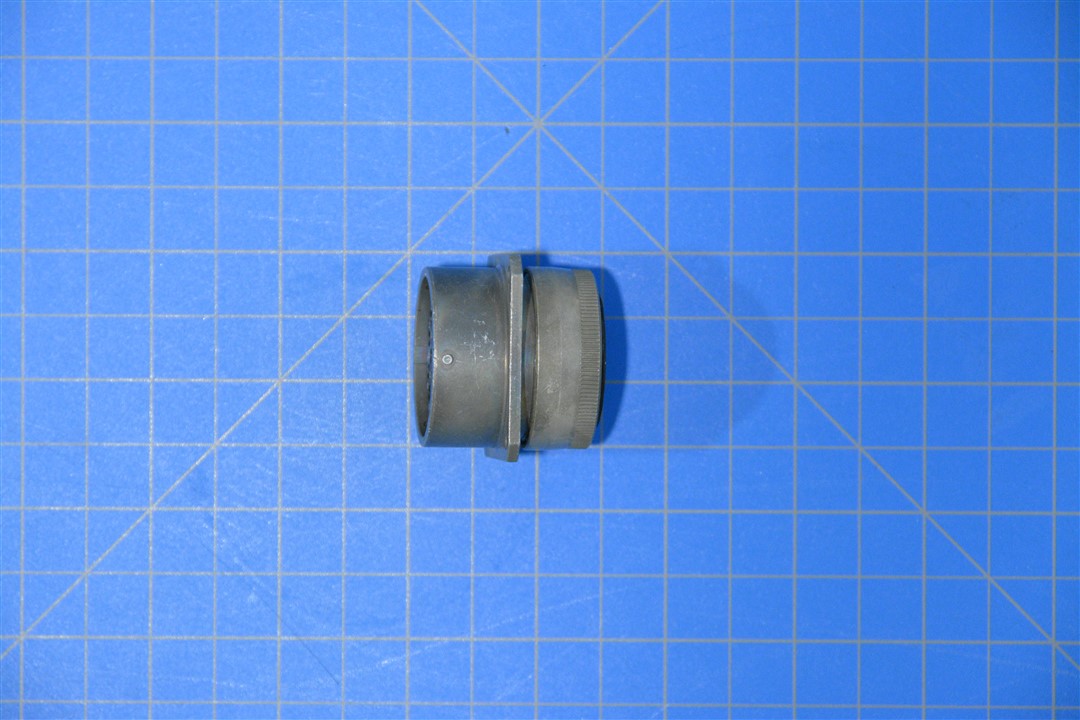

MS3120E22-21S – CONNECTOR

Description

MS3120E22-21S – CONNECTOR

Specifications

Body Style: Straight Shape, External Coupling
Protection: Moisture Proof And Salt Water Resistant And Vibration Proof And Thermal Shock Resistant And Corrosion Resistant
Terminal Type: Crimp Single Mating End Single Contact Grouping
Contact Surface: Gold Single Mating End Single Contact Grouping And Nickel Single Mating End Single Contact Grouping
Precious Material: Gold
Shell Material: Aluminum Alloy
Shell Surface Treatment: Cadmium And Chromate
Overall Height: 1.578″ Max
Overall Length: 1.709″ Max
Overall Width: 1.578″ Max
Center To Center Distance Between Mounting Facilities Parallel To Height: 1.250″ Nom
Contact Arrangement Style: 22-21 Single Mating End
Contact Quantity: 21 Single Mating End Single Contact Grouping
Contact Type: Round Socket Single Mating End Single Contact Grouping
Locking Method: Bayonet Pin
Mating End Quantity: 1
Max Ac Voltage: 600.0 Single Mating End Single Contact Grouping
Polarization Method: Keyway Or Multiple Keyway
Shell Type: Solid
Shoulder To Front Face Distance: 0.556″ Min – 0.587″ Max
Unthreaded Mounting Hole Diameter: 0.115″ Min – 0.125″ Max
Contact Removal: Removable Single Mating End Single Contact Grouping
Precious Material Location: Contact Surfaces Gold
Precious Material Weight: 0.021 Gold Grains, Troy
Terminal Location: Back Single Mating End Single Contact Grouping

Part Number: MS3120E22-21S
Unpunctuated: MS3120E2221S

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
