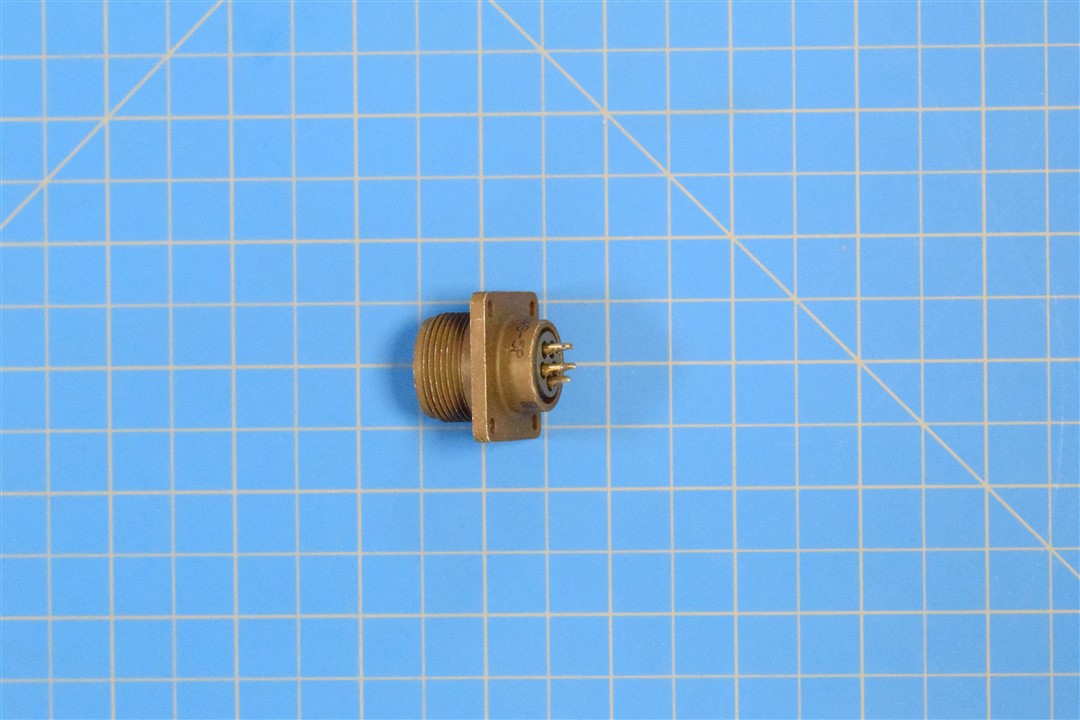

MS3102R14S-5P – CONNECTOR, RECEPTACLE, ELECTRICAL

Description

MS3102R14S-5P – CONNECTOR, RECEPTACLE, ELECTRICAL

Specifications

Body Style: Straight Shape, External Coupling
Protection: Moisture Proof And Salt Water Resistant And Vibration Resistant
Terminal Type: Solder Well Single Mating End Single Contact Grouping
Contact Surface: Gold And Silver Single Mating End Single Contact Grouping
Precious Material: Gold And Silver
Shell Material: Aluminum Alloy
Shell Surface Treatment: Cadmium
Overall Height: 1.188″ Nom
Overall Length: 1.188″ Max
Overall Width: 1.188″ Nom
Nominal Thread Length: 0.375″
Thread Class: 2A
Thread Direction: Right-Hand
Thread Series Designator: Unef
Thread Size: 0.875″
Center To Center Distance Between Mounting Facilities Parallel To Height: 0.906″ Nom
Contact Arrangement Style: 14S-5 Single Mating End
Contact Quantity: 5 Single Mating End Single Contact Grouping
Contact Type: Round Pin Single Mating End Single Contact Grouping
Locking Method: Externallyed Shell
Mating End Quantity: 1
Max Ac Voltage: 200.0 Single Mating End Single Contact Grouping
Max Current: 22.0 Single Mating End Single Contact Grouping
Max Dc Voltage: 250.0 Single Mating End Single Contact Grouping
Polarization Method: Keyway Or Multiple Keyway
Shell Type: Solid
Shoulder To Front Face Distance: 0.562″ Nom
Threaded Device Type: Coupling Facility
Unthreaded Mounting Hole Diameter: 0.120″ Nom
Contact Removal: Nonremovable Single Mating End Single Contact Grouping
Precious Material Location: Contact Surfaces Gold And Contact Surfaces Silver
Precious Material Weight: 0.005 Gold Grains, Troy And 0.005 Silver Grains, Troy
Terminal Location: Back Single Mating End Single Contact Grouping

Part Number: MS3102R14S-5P
Unpunctuated: MS3102R14S5P

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.

AVBOX US Certificate of Conformance: This product comes with an AVBOX US Certificate of Conformance (CoC), assuring that the part(s) meet specified design, quality, and regulatory standards at the time of manufacture, providing confirmation of compliance and adherence to applicable aviation requirements.

Part Numbers, Alternates & Reference Info: We ship the exact part number shown in the product title/description when in stock. Any NSNs or alternate part numbers listed are for traceability/reference only. If a compatible alternate is the only option available, we will contact you before shipping to confirm acceptance. Specifications are compiled from multiple sources and provided for convenience; always verify fit, tolerances, and requirements in the official spec sheets and applicable repair manuals/IPCs before purchase. If specific documentation (e.g., 8130 or company CoC/trace) is required, please contact us before ordering. We do not provide usage/support guidance, please refer to the manuals. Ordering the wrong part can extend lead times and result in aircraft downtime.
