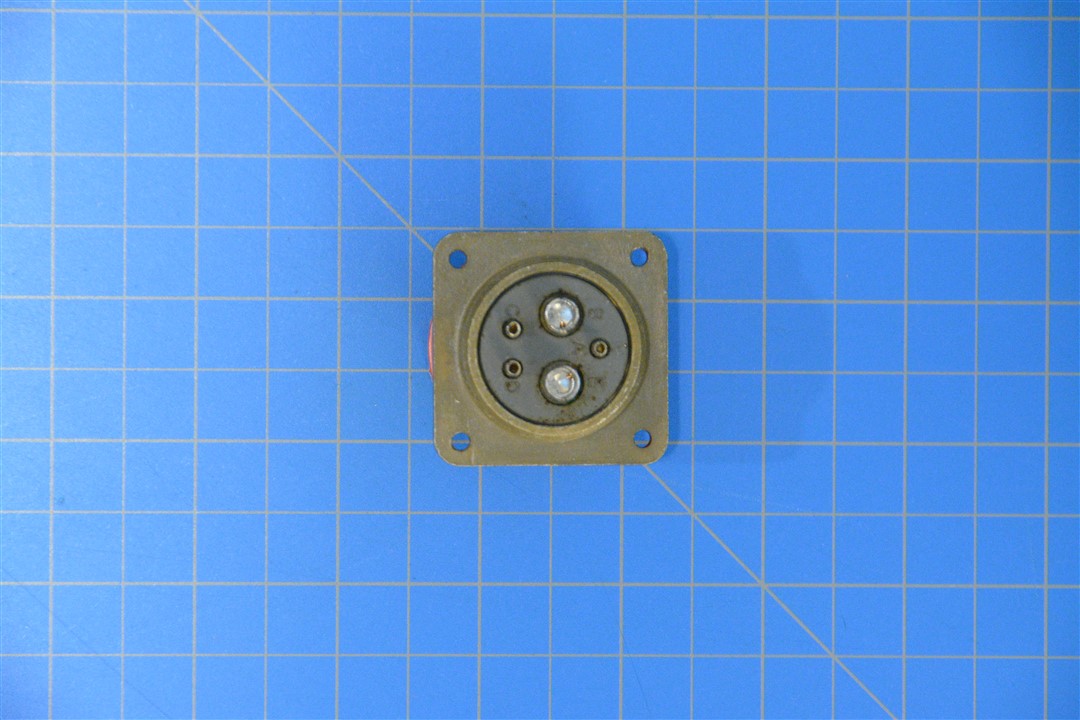

MS3102E22-12P – CONNECTOR, RECEPTACLE, ELECTRICAL

Description

MS3102E22-12P – CONNECTOR, RECEPTACLE, ELECTRICAL

Specifications

Body Style: Straight Shape, External Coupling
Terminal Type: Solder Well Single Mating End First Contact Grouping
Terminal Type: Solder Well Single Mating End Second Contact Grouping
Shell Material: Aluminum Alloy
Overall Height: 1.625″ Nom
Overall Length: 1.938″ Max
Overall Width: 1.625″ Nom
Thread Class: 2A
Thread Direction: Right-Hand
Thread Quantity Per Inch: 18
Thread Series Designator: Unef
Thread Size: 1.375″
Center To Center Distance Between Mounting Facilities Parallel To Height: 1.250″ Nom
Contact Arrangement Style: 22-12 Single Mating End
Contact Quantity: 2 Single Mating End First Contact Grouping
Contact Quantity: 3 Single Mating End Second Contact Grouping
Locking Method: Externallyed Shell
Mating End Quantity: 1
Max Ac Voltage: 900.0 Single Mating End First Contact Grouping
Max Ac Voltage: 900.0 Single Mating End Second Contact Grouping
Max Current: 22.0 Single Mating End Second Contact Grouping
Max Current: 73.0 Single Mating End First Contact Grouping
Max Dc Voltage: 1250.0 Single Mating End First Contact Grouping
Max Dc Voltage: 1250.0 Single Mating End Second Contact Grouping
Polarization Method: Keyway Or Multiple Keyway
Shell Type: Solid
Shoulder To Front Face Distance: 0.750″ Nom
Threaded Device Type: Coupling Facility
Unthreaded Mounting Hole Diameter: 0.120″ Nom
Contact Removal: Removable Single Mating End First And Second Contact Grouping
Terminal Location: Back Single Mating End First Contact Grouping
Terminal Location: Back Single Mating End Second Contact Grouping

Part Number: MS3102E22-12P
Unpunctuated: MS3102E2212P
