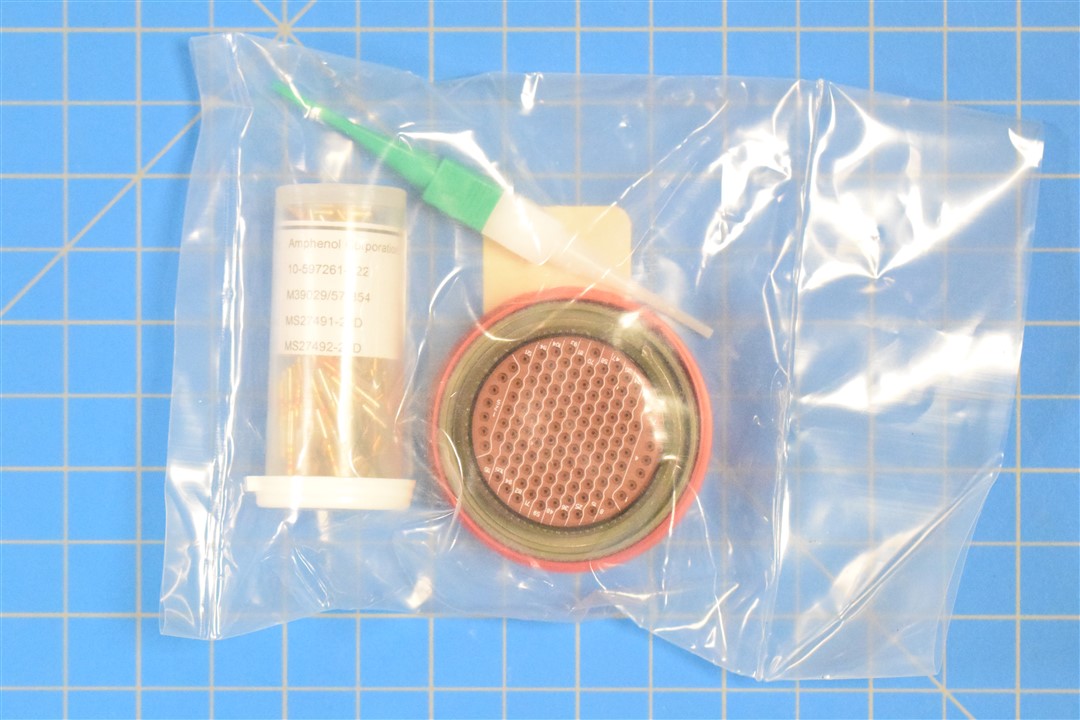

MS27473T24B35S – CONNECTOR

Description

MS27473T24B35S – CONNECTOR

Specifications

Body Style: Straight Shape, Internal Coupling
Protection: Moisture Resistant And Salt Water Resistant And Vibration Resistant
Special Features: 1-7/16-18 Unef Mod Backshell Thread
Terminal Type: Crimp Single Mating End Single Contact Grouping
Contact Surface: Gold Single Mating End Single Contact Grouping
Precious Material: Gold
Shell Material: Aluminum Alloy
Shell Surface Treatment: Cadmium
Overall Diameter: 1.766″ Max
Overall Length: 0.844″ Max
Nominal Thread Length: 0.219″
Thread Class: 2A
Thread Direction: Right-Hand
Thread Quantity Per Inch: 18
Thread Series Designator: Unef
Thread Size: 1.438″
Contact Arrangement Style: 24-35 Single Mating End
Contact Quantity: 128 Single Mating End Single Contact Grouping
Contact Type: Round Socket Single Mating End Single Contact Grouping
Locking Method: Bayonet Latch
Mating End Quantity: 1
Polarization Method: Keyway Or Multiple Keyway
Shell Type: Solid
Threaded Device Type: Back Shell
Contact Removal: Removable Single Mating End Single Contact Grouping
Precious Material Location: Contact Surfaces Gold
Precious Material Weight: 0.128 Gold Grains, Troy
Terminal Location: Back Single Mating End Single Contact Grouping

Part Number: MS27473T24B35S
Unpunctuated: MS27473T24B35S

The specifications above are for reference only. Verify tolerances and details in the official spec sheets before use.
